RAYBESTOS 980076R2 Part Description
Manufacturer
Product Description

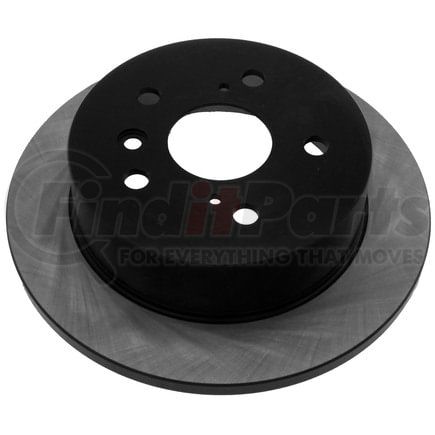

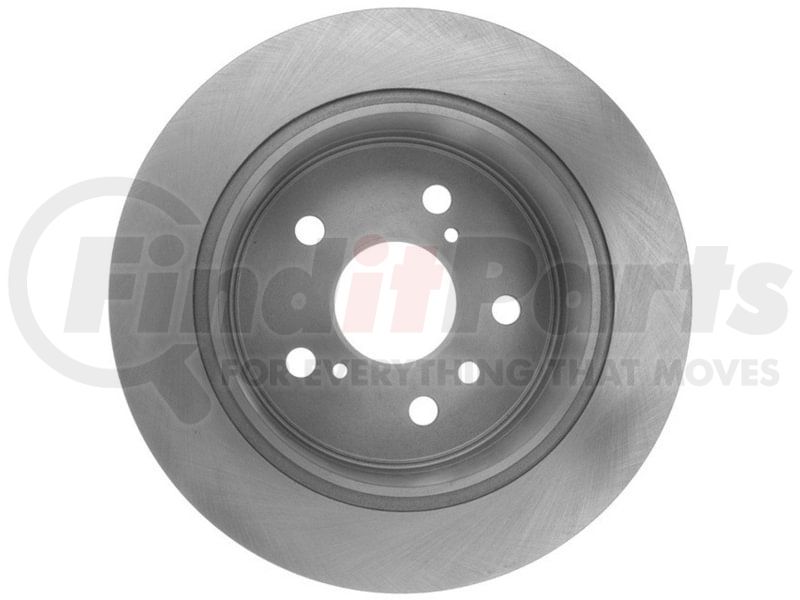

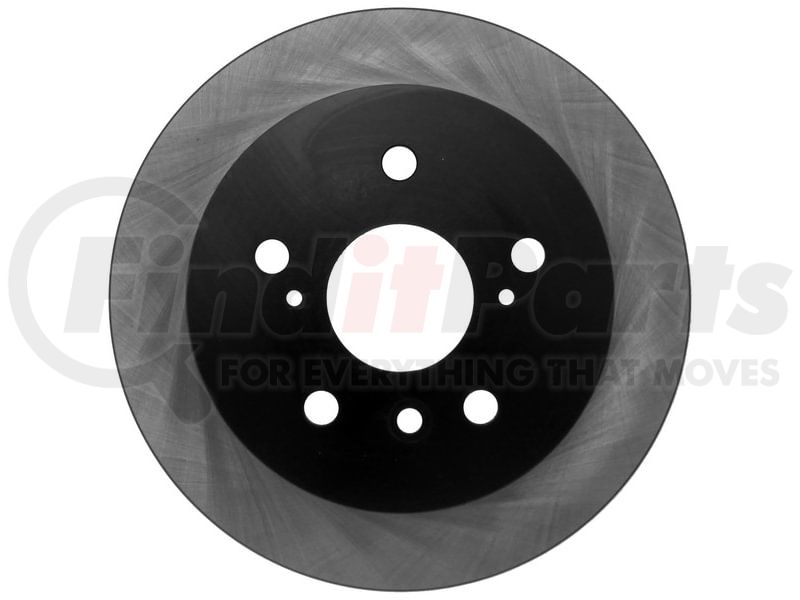

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 980076R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.44 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.413 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.566 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Outside Diameter | 10.591 IN |
| Overall Height | 2.551 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 62 MM |
| Discard Thickness | 10.5 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Nominal Thickness | 12 MM |
| Outside Diameter | 269 MM |
| Overall Height | 64.8 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213447880 |
RAYBESTOS 980076R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 145411, 832934, YH145411, YH145411C, YH145411P |
| AutoZone | 31322, 31322DG |
| Autopartsource | 579345 |
| Autospecialty | JBR973 |
| Autoxtra | 126087, 80980076, AX31322, AX31322P |
| Beck/Arnley | 083-2934 |
| Bendix | 145411 |
| BrakeBest | 50011227, 980076, 980076FZN, 980076R, 980076RGS, BD126087 |
| Brembo | 25857, 08.A108.11 |
| Casting Numbers | 211641-C, 325974 |
| Centric Parts | 120.44126, 120.44126CRY, 121.44126, 126.44126CSL, 126.44126CSR, 126.44126SL, 126.44126SR, 127.44126L, 127.44126R, 128.44126CL, 128.44126CR, 128.44126L, 128.44126R, 227.44126L, 227.44126R, 320.44126, 321.44126 |
| Dura Corp | BR31322, BR3132202 |
| DuraGo | BR31322, BR3132202, BR31322-02 |
| Mighty Distributing System | 31322 |
| Monroe Brakes | BD126087 |
| Newtek Automotive USA | 31322 |
| Omnicraft | QBRR62 |
| PowerStop | JBR973EVC |
| Promax | 14-31322, 20-31322 |
| Qualis | 31322 |
| Quality Brand | Q518 |
| TopNotch | TN980076GEO |
| Toyota | 4243106050, 4243106051, 4243133100 |
| TruStar | 479345 |
| UAP | 31322 |
| Ultra Brake | TO-6161 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51435 |
| WABCO - Archived | PS126087 |
| WORLDPAC | 1407-78598, 1427-731782 |
| Wagner Brake | BD126087, BD126087E |
| Winhere | 661444 |
RAYBESTOS 980076R2 Fits Vehicles
- Toyota Solara (2004-2008)
- Toyota Camry (2002-2006)
- Lexus ES300 (2002-2003)
- Toyota Avalon (2005-2007)
- Lexus ES330 (2004-2006)
