RAYBESTOS 980972R2 Raybestos R-Line+ Brake Rotor

Name: Raybestos 980972R2 Raybestos R-Line+ Brake Rotor
SKU: 980972r2
Availability: OutOfStock

★★★★★ (0)

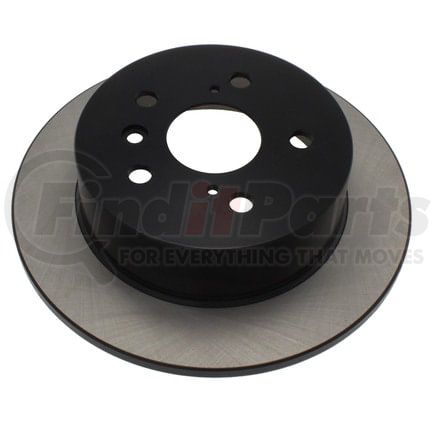

Raybestos 980972R2 Disc Brake Rotor Raybestos R-Line+ Brake Rotor

Tap to view 2 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980972R2 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line+ Brake Rotor

Features & Benefits

Painted Hat and Edges
Top-Notch Surface Finish
Superior surface finish for consistent braking.
OE Vane Design
OE vane design and plate thickness for heat capacity and strength.
Advanced Metallurgy
Advanced metallurgy for structural strength and heat transfer.
Low Initial Lateral Run-out
Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
Precision Balance
Precision balance for vibration free performance.

Raybestos R-Line+ Brake Rotor

RAYBESTOS 980972R2 Specifications

Product Attributes

ABS Tone Ring Included	No
Center Hole Diameter	2.44 IN
Conventional Or Drum-In-Hat Type Rotor	Drum-In-Hat
Directional or Non-Directional Brake Surface	Non-Directional
Discard Thickness	0.335 IN
Inside Diameter	7.579 IN
Material	Cast Iron
Mounting Bolt Hole Circle Diameter	4.5 IN
Mounting Bolt Hole Diameter	0.573 IN
Mounting Bolt Hole Quantity	5
Nominal Thickness	0.364 IN
Outside Diameter	11.059 IN
Overall Height	2.63 IN
Solid Or Vented Type Rotor	Solid
Stud/Lug Hole Quantity	5
Surface Type	Smooth
Harmonize Code	8708.30.5030
Salability Restrictions	No
UNSPSC Code	25171715
Center Hole Diameter	62 MM
Discard Thickness	8.5 MM
Inside Diameter	192.5 MM
Mounting Bolt Hole Circle Diameter	114.3 MM
Mounting Bolt Hole Diameter	14.55 MM
Nominal Thickness	9.25 MM
Outside Diameter	280.9 MM
Overall Height	66.8 MM

Additional Information

Country of Origin (Primary)	CN
Canadian Harmonizing Tariff Code	8708309990
Harmonized Tariff Code (HTS)	8708305030
UPC	00887213449006

RAYBESTOS 980972R2 Cross References

Brand	Part Number
Advance Auto Parts	YH439745P
AutoZone	44749, 44749DG, 44749DL
Autopartsource	479636, 579636
Autoxtra	AX901192, AX901192P
Bendix	PRT6156
Bosch	50011559
BrakeBest	50011559, 980972, 980972R, 980972RGS
Centric Parts	120.44188, 120.44188CRY, 121.44188, 126.44188SL, 126.44188SR, 127.44188L, 127.44188R, 128.44188L, 128.44188R, 320.44188, 321.44188
Dura Corp	BR31608, BR901192, BR90119202
DuraGo	BR901192, BR90119202, BR901192-02
Dynamic Friction Company	604-76091
Newtek Automotive USA	31608
PowerStop	JBR1576EVC
Promax	14-31608
Qualis	44749
TopNotch	TN980972GEO
Toyota	4243106120, 4243133150
UAP	2901192, R44188
Ultra Brake	TO-6008
WORLDPAC	1407-439745, 1427-609989
Wagner Brake	BD180494, BD180494E
Winhere	661963
Worldparts	WS1-231608

RAYBESTOS 980972R2 Fits Vehicles

Lexus ES300h (2013-2018)
Lexus ES350 (2013-2018)
Toyota Avalon (2013-2018)
Toyota Camry (2012-2017)
