RAYBESTOS 982409R Part Description
Manufacturer
Product Description

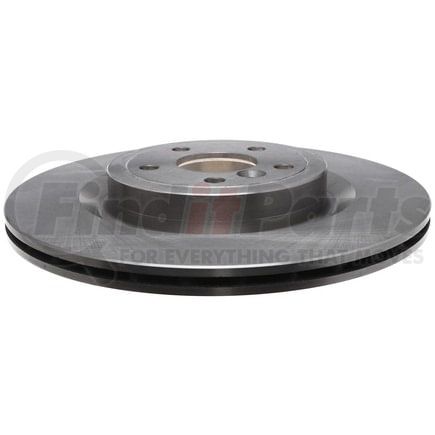

Raybestos R-Line Brake Rotor
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
Raybestos R-Line Brake Rotor
RAYBESTOS 982409R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Inside Diameter | 8.496 IN |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Diameter | 0.539 IN |
| Nominal Thickness | 0.787 IN |
| Outside Diameter | 12.795 IN |
| Overall Height | 1.654 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.539 IN |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 63.5 MM |
| Discard Thickness | 18 MM |
| Inside Diameter | 215.8 MM |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Nominal Thickness | 20 MM |
| Outside Diameter | 325 MM |
| Overall Height | 42 MM |
| Stud/Lug Hole Diameter | 13.7 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213398724 |
RAYBESTOS 982409R Cross References
RAYBESTOS 982409R Fits Vehicles
- Jaguar XF (2016-2024)
- Jaguar XE (2016-2020)
RAYBESTOS 982409R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 982409R Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
