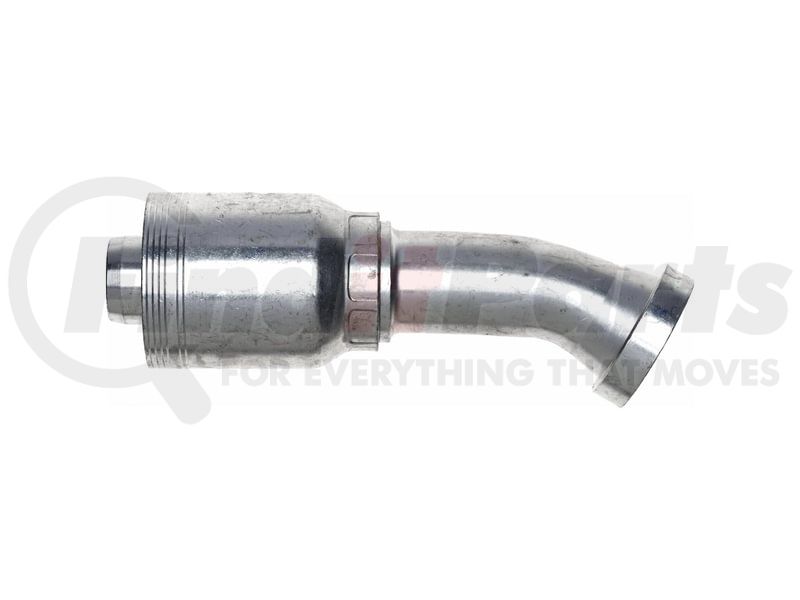

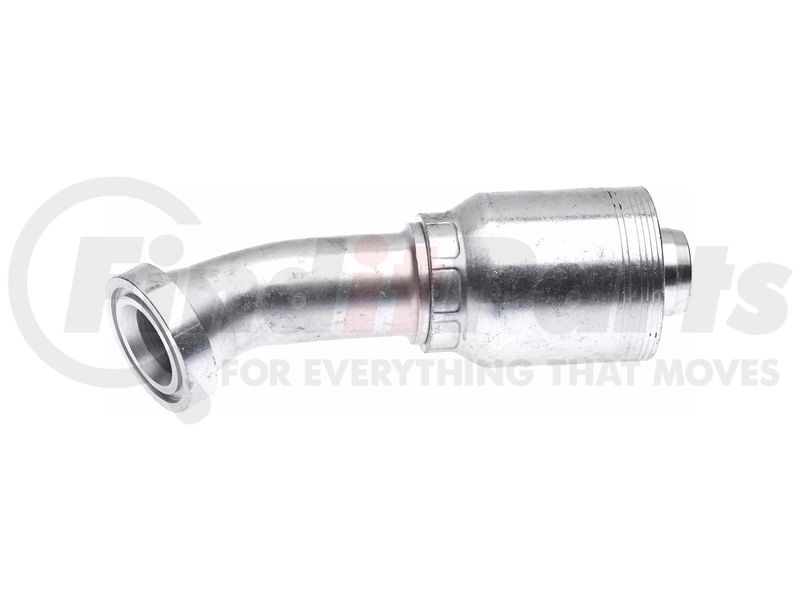

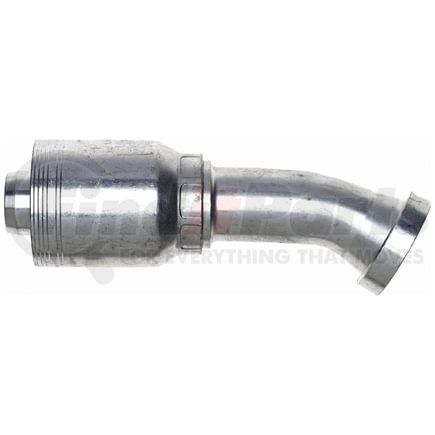

Gates G24404-2424 - Caterpillar Style O-Ring Flange - 30 Bent Tube (GlobalSpiral MAX Pressure)
$32349
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Caterpillar Style O-Ring Flange - 30 Bent Tube (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks

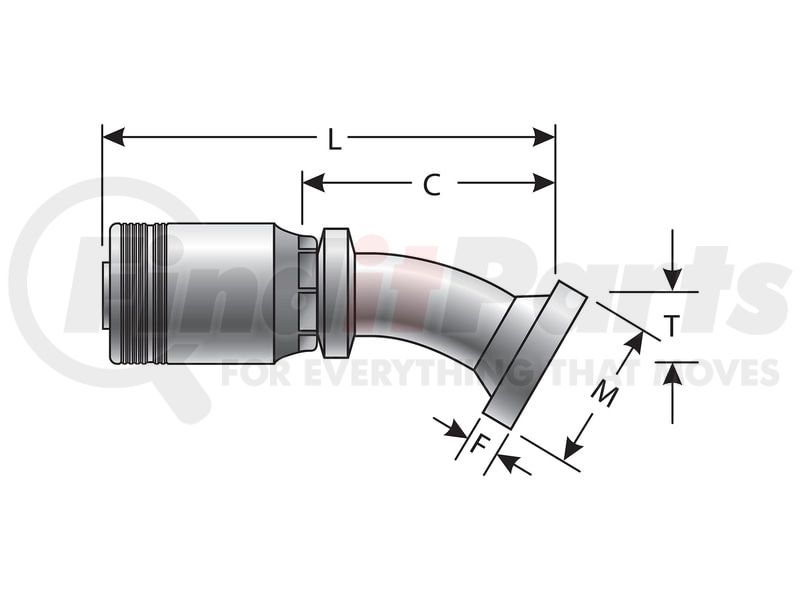

Product Attributes
| Coupling Description | GlobalSpiral MAX Pressure Caterpillar Style O-Ring Flange - 30 Bent Tube |
| Industrial Description | 24GSM-24FLC30-023 |
| Inside Diameter | 1.5 IN |
| 9952 | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Flange Thickness | .56 in |
| Flange Diameter | 2.5 IN |
| Drop Length | .9 IN |
| 9929 | 5.49 IN |
| Length | 9.25 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 14.2 MM |
| Flange Diameter | 63.5 MM |
| 1874 | 22.9 MM |
| 9929 | 139.5 MM |
| Length | 235 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075386230 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
