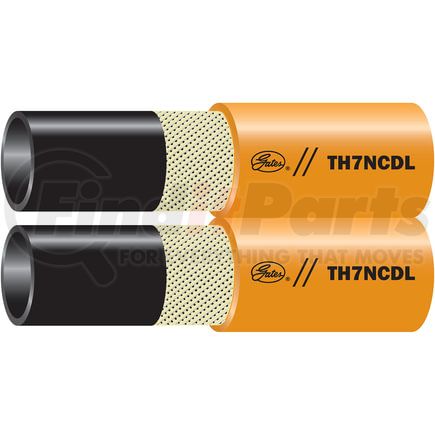

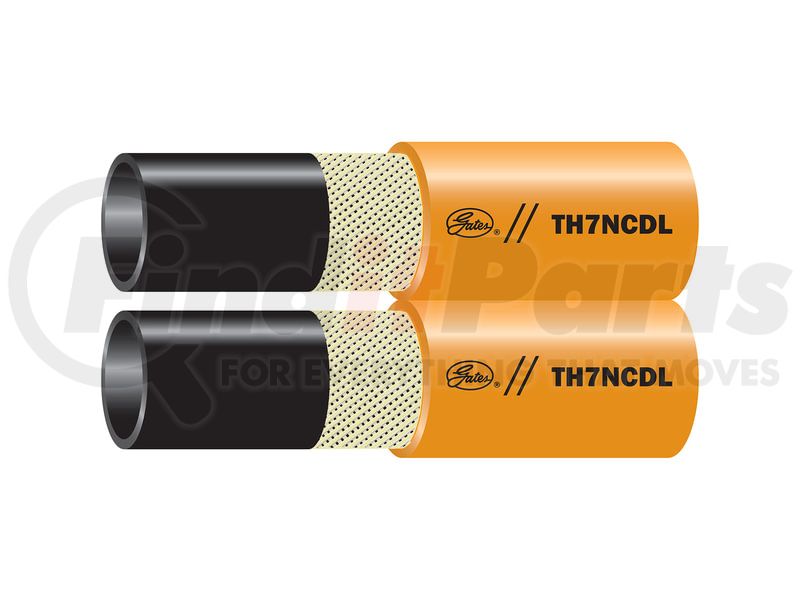

(888) 312-8812 Login SignupGATES 71089 TH7NCDL Non-Conductive Dual Line Hydraulic Thermoplastic Hose - SAE 100R7
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 71089 Part Description
Manufacturer
Product Description
TH7NCDL Non-Conductive Dual Line Hydraulic Thermoplastic Hose - SAE 100R7
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Orange color TH7NCDL meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with significantly tighter bend radius
- Meets SAE 100R7 Electrical Conductivity Test; maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Meets ANSI A92.2 for vehicle mounted aerial devices
- Temperature Range: Petroleum and Synthetic Oils : -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
GATES 71089 Specifications
Product Attributes
| Product Type | TH7NCDL Non-Conductive Dual Line Hydraulic Hose - SAE 100R7 |
| Industrial Description | 8TH7NCDLXCTN |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 2000 PS |
| Burst Pressure | 8000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 250 FT |
| Dash Size | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .8 IN |
| Bend Radius | 3.75 IN |
| Tube Description | Nylon |
| Hose Material | Nylon |
| Reinforcement Material | Synthetic Fiber |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Orange |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R7 |
| EN Standard | 853 2SN |
| ISO Standard | 1436 2SN R2 |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| UPC | 00770075322054 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 71089 Part Interchanges
| Brand | Part Number |
|---|---|
| Weatherhead | H43588250R |
| NAPA | 71089 |
