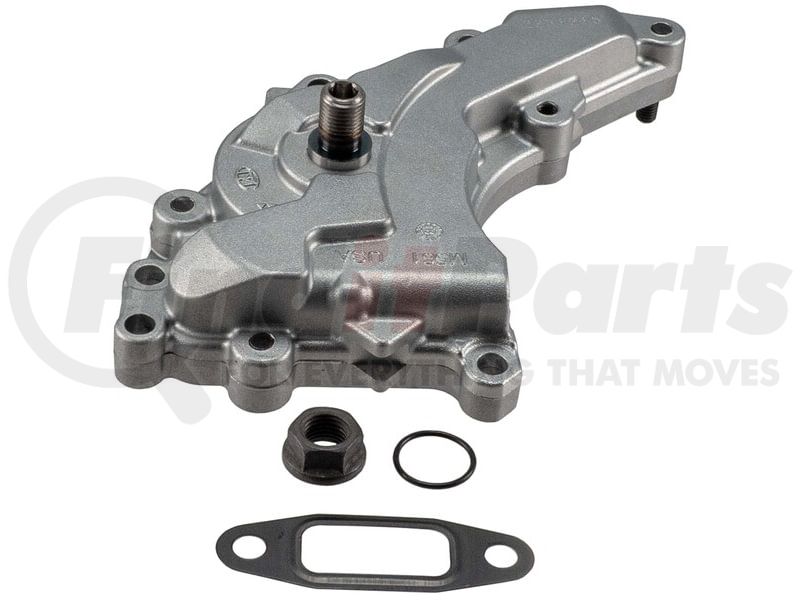

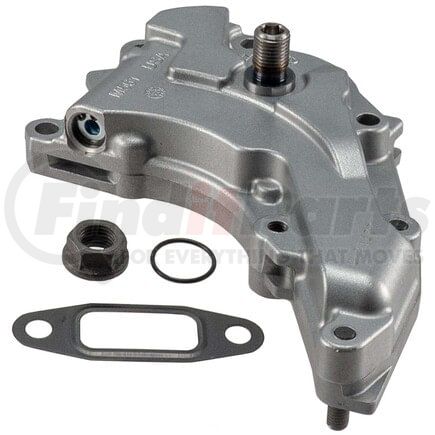

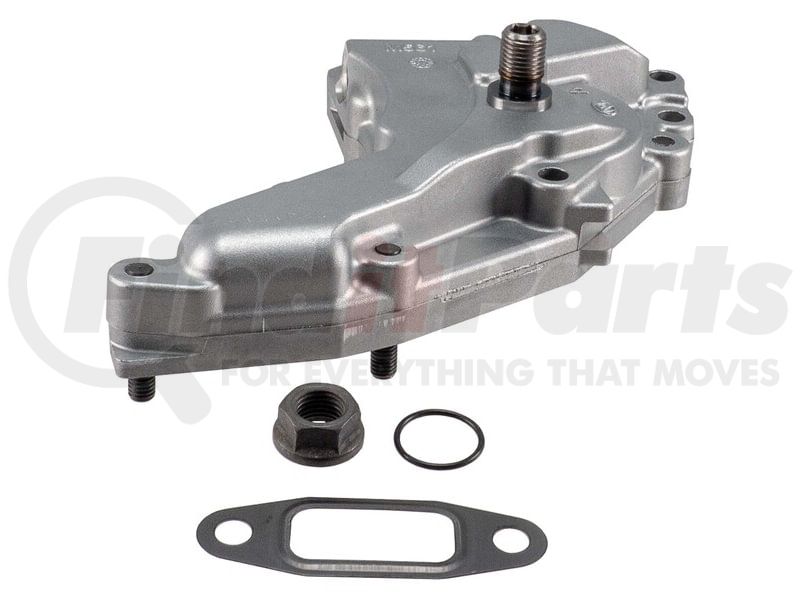

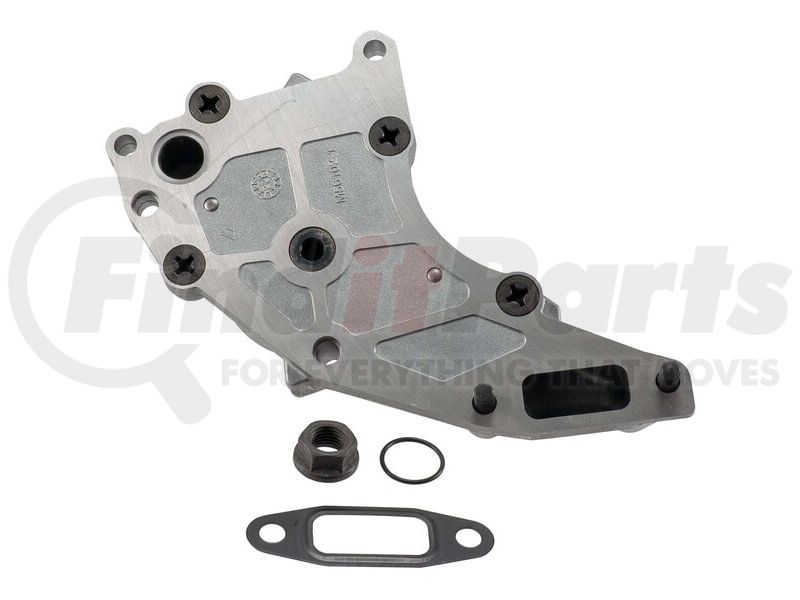

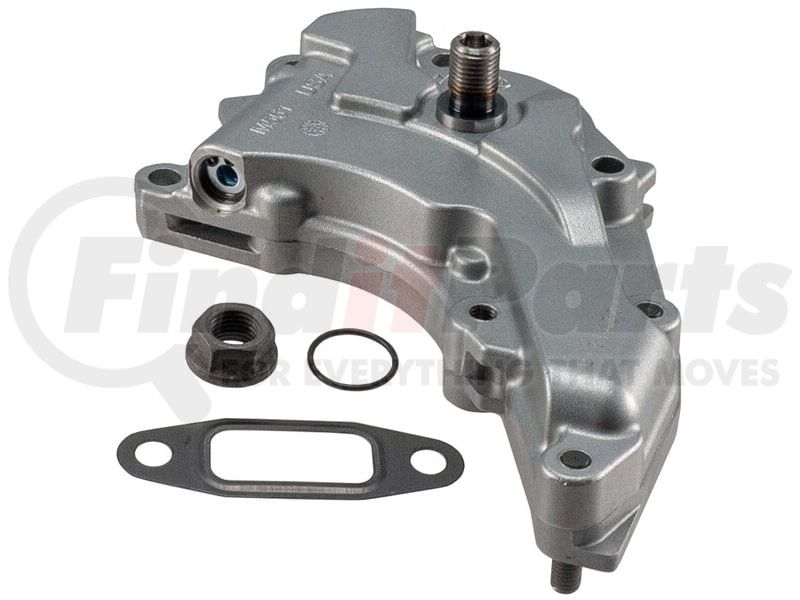

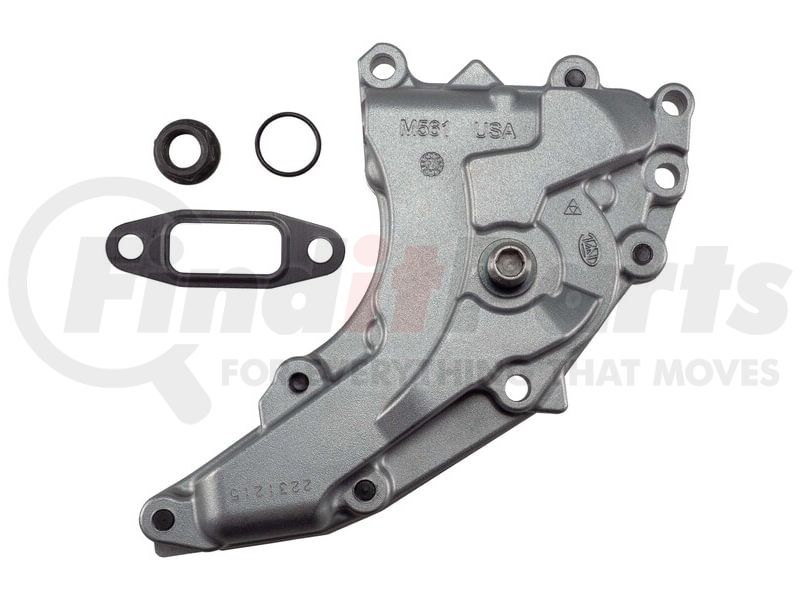

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M561 M561 Stock Replacement : Standard Volume, Standard Pressure, Cast Aluminum Oil Pump
Tap to view 4 more
$30649
Limited availability at this price!
In Stock
Get it by Friday, Sep 4
MELLING ENGINE PRODUCTS M561 Part Description
MELLING ENGINE PRODUCTS M561 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 9.75 IN |
| Width | 248.0 MM |
| Height | 5.736 IN |
| Height | 146.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Timing Chain |
| Rotor Material | Stainless Steel |
| Oil Pump Type | Rotary |
| Solenoid Included | No |
| Mounting Hole Diameter | 0.35 IN |
| Mounting Hole Diameter | 9.0 MM |
| Alternate Pressure Springs Included | No |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Gears Included | Yes |
| Pickup Screen Included | No |
| Intermediate Shaft Included | Not Applicable |
| Inlet Size (in) | 1.500 |
| Inlet Size (mm) | 13.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Finish | Rust Preventative |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Pickup Tube Diameter | 1.500 IN |
| Pickup Tube Diameter | 13.00 MM |
| Drive Shaft Included | No |
| Adjustable Bypass Pressure | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| UPC | 00729295106036 |
MELLING ENGINE PRODUCTS M561 Cross References
MELLING ENGINE PRODUCTS M561 Fits Vehicles
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- GMC Savana 4500 (2009-2010)
- Chevrolet Express 4500 (2009-2010)
- GMC Sierra 3500 HD (2007-2010)
- Chevrolet Silverado 3500 HD (2007-2010)
- GMC Savana 3500 (2006-2010)
- GMC Savana 2500 (2006-2010)
- Chevrolet Express 3500 (2006-2010)
- Chevrolet Express 2500 (2006-2010)
- Hummer H1 (2006)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2010)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2010)
