(888) 312-8812 Login SignupDORMAN TO60351 Steering Tie Rod End
Tap to view 3 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

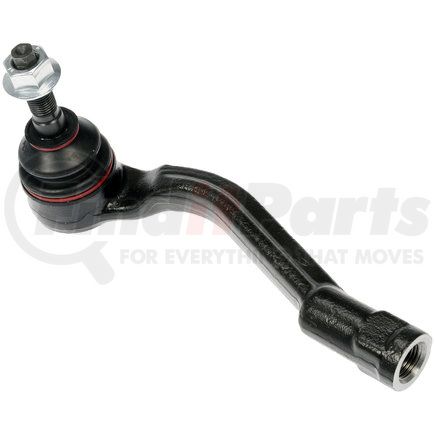

DORMAN TO60351 Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
Hyundai Palisade 2022-20, Hyundai Sonata 2019-18, Kia Cadenza 2020-18
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
STEERING COMPONENTS
DORMAN TO60351 Specifications
Product Attributes
| Dust Boot Included | Yes |
| Width | 39.66 MM |
| Type | Doblado |
| Mounting Hardware Included | Oui |
| End 2 Thread Diameter | 12 MM |
| Height | 95.04 MM |
| Grade Type | Reemplazo estandar |
| Housing Material | Acero |
| Tube Diameter | 18.5 MM |
| Adjustable | Yes |
| Greaseable | No |
| Cone Outside Diameter | 13.2 MM |
| Bearing Material | Polymer |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Regular |
| Stud Type | Taper |
| Head Drive Type | Hex |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 2 |
| End 1 Thread Diameter | 16 MM |
| Ball Joint Included | Yes |
| Bolts Included | No |
| Center Mount Hole Quantity | 1 |
| Center Mount Stud Quantity | 1 |
| End 1 Attachment Type | Roscado |
| End 2 Attachment Type | Threaded |
| End 2 Type | Threaded |
| Material | Steel |
| Outside Diameter | 18.5 mm |
| Package Contents | 1 Tie Rod |
| Thread Pitch | 1.5 mm |
| Tie Rod End Thread Diameter | 16 mm |
| Weight | 1.54 lb |
| Length | 186 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Finish | Coated |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Castle Nut Included | No |
| Outside Diameter | 18.5 mm MM |
| Thread Pitch | 1.5 mm mm |
| Weight | 1.54 lb LB |
| Center Mount Hole Quantity | 1 IN |
| Center Mount Stud Quantity | 1 IN |
| End 1 Thread Diameter | 16 mm MM |
| End 1 Thread Pitch | 1.5 mm mm |
| End 2 Thread Diameter | 12 mm MM |
| End 2 Thread Pitch | 1.25 mm MM |
| End 2 Threads Per Inch | 2 |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00194883177246 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO60351 Cross References
DORMAN TO60351 Fits Vehicles
- Kia Cadenza (2018-2020)
- Hyundai Sonata (2018-2019)
- Hyundai Palisade (2020-2025)
DORMAN TO60351 Customer Reviews
No reviews yet
Be the first to review this product!
DORMAN TO60351 Manufacturer Information
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
DORMAN TO60351 Questions & Answers
No questions yet
Be the first to ask a question about this product!
