(888) 312-8812 Login SignupRAYBESTOS PGD677C Raybestos Element3 Ceramic Brake Pad Set
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS PGD677C Part Description
Manufacturer
Product Description

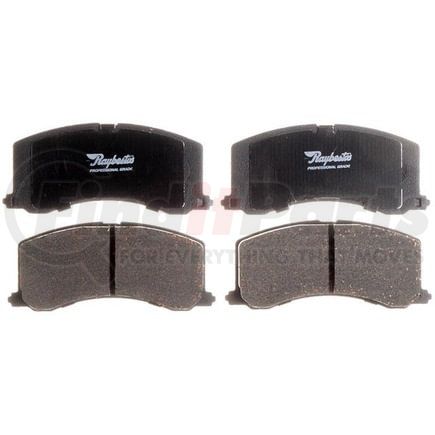

Raybestos Element3 Ceramic Brake Pad Set
Application Summary
2002-1995 Suzuki Esteem Front
Features & Benefits
- Application Specific Formulations
- Application-specific formulas for quiet operation and superior stopping power. Element3(R) brake pads are engineered to combine the best of ceramic & semi-metallic formulations all into one brake pad.
- Noise Dampening Shims
- Premium multi-layer shims on EHT(R) formulations promote quiet stopping in a wide variety of temperature ranges and vehicle platforms.
- EHT(R) Enhanced Hybrid Technology
- EHT(R) Enhanced Hybrid Technology formulations have a premium blend of friction materials allowing optimal performance, improved pad wear & durability, and increased stopping power during aggressive braking.
- Hardware & Electronic Wear Sensors
- Stainless steel brake hardware and electronic wear sensors included. (where applicable)
RAYBESTOS PGD677C Specifications
Product Attributes
| Chamfered Edges | No |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Ceramic |
| Friction Material Slot Type | Slotted |
| Inner Pad Height | 1.909 in |
| Inner Pad Overall Thickness | 0.587 IN |
| Inner Pad Width | 4.390 in |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 1.909 IN |
| Outer Pad Overall Thickness | 0.587 in |
| Outer Pad Width | 4.390 IN |
| Pad Shim Attachment Type | Staked |
| Pad Shims Attached | Yes |
| Pad Shims Included | Yes |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | Yes |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708301900 |
| Harmonized Tariff Code (HTS) | 8708305040 |
| UPC | 00829352232538 |
RAYBESTOS PGD677C Cross References
| Brand | Part Number |
|---|---|
| 105.06770, A0149974647 | |
| ADVICS | AD0677 |
| AGNA Brakes | ALD677M |
| American Remanufactured | 62-D677, 64-D677, 65-D677, 66-D677, 762-D677 |
| AutoZone | DG677 |
| Autopart International | 93346 |
| Autospecialty | 14-677-12, 22-677-01, 23-677-01, 24-677-01, 24-677-02, 25-677-01, 25-677-02, 27-677, 27-677-01, 28-677, 28-677-01 |
| Autoxtra | AD677 |
| Beck/Arnley | 088-1541D, 082-1541 |
| Bendix | D677, MRD677, PMD677, MKD677 |
| BrakeBest | D677 |
| CENTRIC | 105.06770 |
| Centric Parts | 100.06770, 101.06770, 102.06770, 103.06770, 105.06770, 106.06770, 107.06770, 108.06770, 300.06770, 301.06770, 500.06770 |
| Delphi | CL76 |
| EIS Brakes | DX677 |
| Guardian | 61-677 |
| Inwood Automotive Products | D677, DMX677, PDMX677, S677, SP677 |
| KEM | D677, XD677 |
| MAGMA PRODUCTS | MXD677C |
| Monroe Brakes | DX677 |
| Morse | D677, NX677 |
| PowerStop | 16-677, 17-677 |
| Satisfied | CL677 |
| Suzuki | 5580061G50, 5580061G60, 5580061G70, 5580061G72 |
| WAGNER | PD677 |
| Wagner Brake | D677, PD7557, ZD677, PD677 |
RAYBESTOS PGD677C Fits Vehicles
- Suzuki Esteem (1995-2002)
