RAYBESTOS PGD546M - Brake Parts Inc Raybestos Element3 Metallic Disc Brake Pad Set
$9649
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including silica, which is known to the state of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

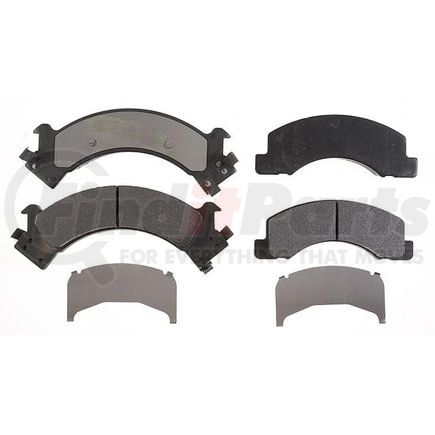

Raybestos Element3 Metallic Brake Pad Set
Application Summary
1997-1987 Isuzu NPR Front, 1997-1992 GMC W4500 Forward Front, 1997-1988 Chevrolet W4500 Tiltmaster Front, 1997-1995 Chevrolet W3500 Tiltmaster Front, 1997-1995 GMC W3500 Forward Front
Product Attributes
| Chamfered Edges | No |
| FMSI Number | D546-L7425 |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Metallic |
| Friction Material Slot Type | Slotted |
| Inner Pad Height | 2.740 in |
| 9479 | 0.866 IN |
| Inner Pad Width | 7.210 in |
| Mounting Hardware Included | No |
| 9433 | 3.670 IN |
| 9478 | 0.866 in |
| 9435 | 9.380 IN |
| Pad Shim Attachment Type | Unattached |
| Pad Shims Attached | No |
| Pad Shims Included | Yes |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | Yes |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 00030999994578 |
Part Interchanges
- Delphi CL503
- Kem PXD546
- Morse MKD546HD
- Wagner Brake FD546
- Wagner Brake MX546
- Wagner Brake MX7425
- Wagner Brake SX546
- Wagner Brake SX7425
- Bendix MKD546
- Autospecialty 24-546-02
- Autospecialty 26-546-02
- Autospecialty 28-546
- Autospecialty 28-546-01
- Guardian 65-546
- Performance Friction 0546.10
- Performance Friction 0546.20
- Performance Friction 5464
- Performance Friction 546Z
- Rayloc TS7425M
- Rockhill MD546
- Centric Parts 100.05460
- Centric Parts 102.05460
- Centric Parts 104.05460
- Centric Parts 106.05460
- Centric Parts 300.05460
- Centric Parts 300.08260
- American Remanufactured 64-D546
- EIS Brakes DM546
- EIS Brakes QMX544
- General Motors 97080398
- General Motors 97094710
- Isuzu 8970803980
- Isuzu 8971057030
- Isuzu 8971676320
- Western Brakes WSD546
- Akebono ACT675
- Formula Blue Hydraulic Brake Parts E10505460
- Formula Blue Hydraulic Brake Parts E10905460
- Formula Blue Hydraulic Brake Parts E11105460
RAYBESTOS PGD546M Cross Reference
We have 2 alternatives for the PGD546M by RAYBESTOS:
Fits Vehicles
- Chevrolet W4500 Tiltmaster (1988-1997)
- GMC W4500 Forward (1992-1997)
- Isuzu NPR (1987-1997)
- Chevrolet W3500 Tiltmaster (1995-1997)
- GMC W3500 Forward (1995-1997)
