DELPHI TC7451 Part Description
Manufacturer
Product Description

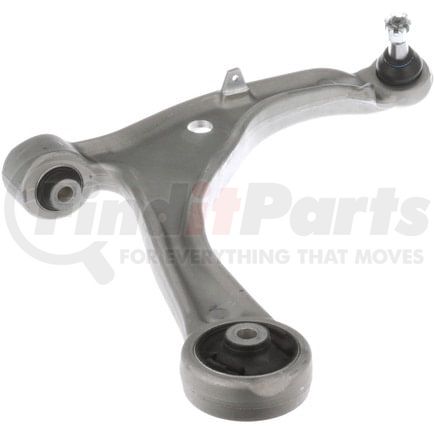

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control Arm and Ball Joint Assembly
DELPHI TC7451 Specifications
Product Attributes
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 104.70 MM |
| Control Arm Maximum Width | 4.122 IN |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 26.40 MM |
| Ball Joint Stud Length | 1.039 IN |
| Control Arm Maximum Length | 451.20 MM |
| Control Arm Maximum Length | 17.764 IN |
| Mounting Hole Diameter | 14.20 MM |
| Mounting Hole Diameter | 0.559 IN |
| Distance Between Bushings | 341.30 MM |
| Distance Between Bushings | 13.437 IN |
| Bushing Inside Diameter | 14.20 MM |
| Bushing Length | 66.00 MM |
| Bushing Length | 2.598 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.472 IN |
| Thread Diameter | 0.472 IN |
| Bushing Inside Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604384183 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC7451 Cross References
DELPHI TC7451 Fits Vehicles
- Honda Odyssey (2014-2017)
