RAYBESTOS 9837 Part Description
Manufacturer
Product Description

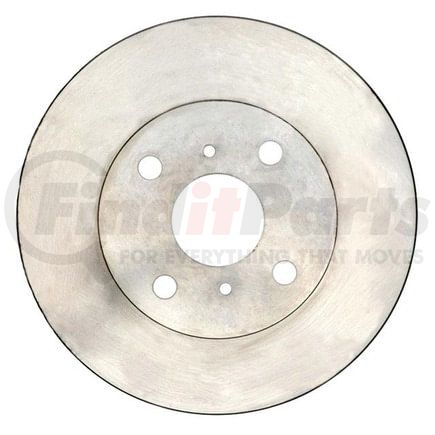

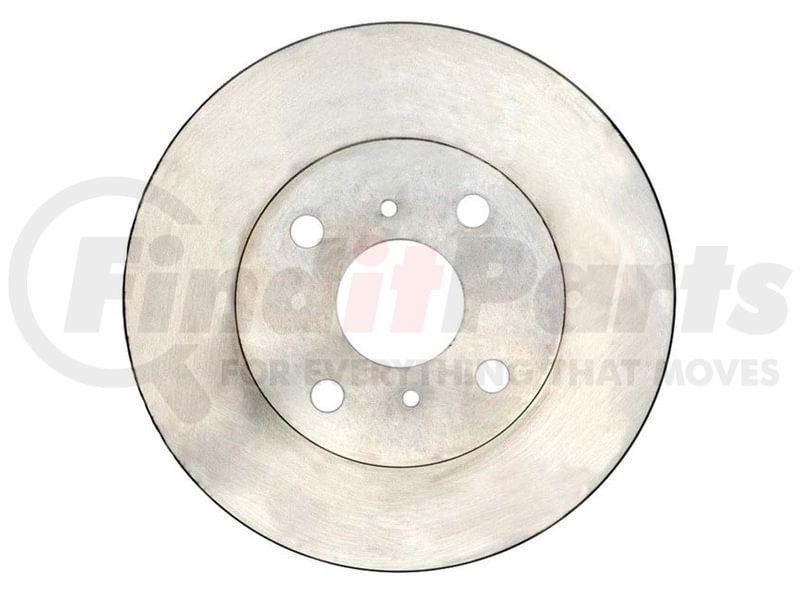

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1990-1983 Toyota Tercel Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 9837 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.126 IN |
| Center Hole Diameter | 54 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.394 IN |
| Discard Thickness | 10 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.433 IN |
| Nominal Thickness | 11 MM |
| Outside Diameter | 9.567 IN |
| Outside Diameter | 243 MM |
| Overall Height | 1.54 IN |
| Overall Height | 39.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CA |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999080387 |
RAYBESTOS 9837 Cross References
| Brand | Part Number |
|---|---|
| 030999080387, 121.44024 | |
| ADVANCE AUTO PARTS | 141297, YH141297, YH141297C |
| AMERICAN REMANUFACTURED | 789-22023, 89-22023 |
| AUTOPART INTERNATIONAL | 78094 |
| AUTOSPECIALTY | JBR182, JBR182E |
| AUTOXTRA | 60803, AX3108 |
| AUTOZONE | 3108, 3108B, 3108DG, DL3108 |
| BECK/ARNLEY | 080-2068, 083-2068 |
| BENDIX | 141297 |
| BRAKE HEADQUARTERS | BR06224 |
| BRAKE PRO | 4619837 |
| BRAKEBEST | 9837, 9837R, 9837RGS, BD60803 |
| BREMBO | 08.3110.10, 25064 |
| Bridgestone | 7070122 |
| CALIFORNIA DRUM & ROTOR | 60803 |
| CENTRIC | 120.44024, 121.44024, 320.44024, 320.44024F |
| CENTURY | 9063 |
| CEW | 1174017 |
| Casting Numbers | 210673-C, 31081, 325023, 6891 |
| Centric Parts | 120.44024, 121.44024, 320.44024, 320.44024F |
| DAYTON WALTHER | D7331 |
| DELPHI | RB42 |
| DURA CORP | BR3108 |
| DuraGo | BR3108 |
| EIS BRAKES | D17259 |
| EUROROTOR | TO606 |
| FADE FREE | 60803 |
| FRATELLI POLETTI | 92YD-A, 93YD-A |
| GIRLING | GR686 |
| GREN | 10201 |
| GUARDIAN | 52-60803 |
| HOLLANDER | 58013 |
| INTERBRAKES | TY191P |
| ITM ENGINE COMPONENTS | 1601523 |
| LAZORLITE | L73-1757 |
| MCI | 4037 |
| MIDAS | BR1362 |
| MIGHTY DISTRIBUTING SYSTEM | 3108 |
| MOUNTAIN OFF-ROAD ENTERPRISES | TR36, TR43 |
| NEWTEK AUTOMOTIVE | 3108 |
| Newtek Automotive USA | 3108 |
| PARTS MASTER | P60803 |
| PRONTO | BR3108 |
| QUALIS | 3108 |
| QUALITEE INTERNATIONAL | 64-79-430 |
| QUALITY BRAND | 3108 |
| QUINTON HAZELL | BDC3559 |
| ROADMATES | 526558 |
| ROCKHILL | 3108 |
| SEARS | 1718 |
| STANDARD ROTORS AND DRUMS | 3108 |
| TEKNOMAC | 11259 |
| THE UNIVERSAL GROUP | 107080 |
| TOYOTA | 4351216030, 4351216031 |
| TRUSTAR | 479430, R79430 |
| TRW | DF1921S |
| UAP | 3108 |
| Universal | 107080 |
| VERA | 3402367 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50367 |
| WAGNER | BD60803 |
| WAGNER BRAKE | BD60703, BD60803 |
| WINHERE | YH1053 |
| WORLDPARTS | W70-532 |
RAYBESTOS 9837 Fits Vehicles
- Toyota Tercel (1983-1990)
