(888) 312-8812 Login SignupRAYBESTOS 96088 Raybestos Specialty - Street Performance Brake Rotor
$46.29
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96088 Part Description
Manufacturer
Product Description

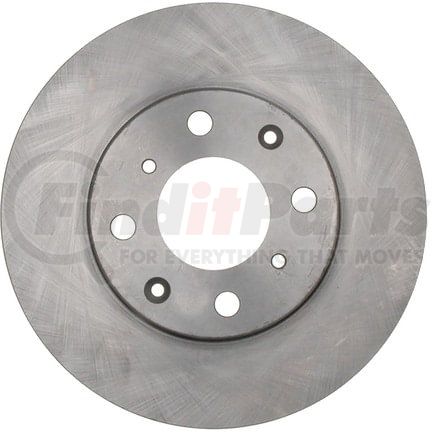

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1991-1988 Honda Civic Front, 1991-1988 Honda CRX Front, 1989-1986 Acura Integra Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96088 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.404 IN |
| Center Hole Diameter | 61.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.669 IN |
| Discard Thickness | 17 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.75 IN |
| Nominal Thickness | 19.05 MM |
| Outside Diameter | 9.515 IN |
| Outside Diameter | 241.7 MM |
| Overall Height | 1.735 IN |
| Overall Height | 44.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999234346 |
RAYBESTOS 96088 Cross References
| Brand | Part Number |
|---|---|
| 190-6363 | |
| ADVANCE AUTO PARTS | 141424, YH141424, YH141424C |
| ALTROM IMPORTS | A03178 |
| AMERICAN REMANUFACTURED | 789-08013, 89-08013 |
| AUTOPART INTERNATIONAL | 78559 |
| AUTOSPECIALTY | JBR304, JBR304E |
| AUTOXTRA | 61859, AX3178 |
| AUTOZONE | 3178, 3178B, 3178DG, DL3178 |
| BECK/ARNLEY | 080-2179, 083-2179 |
| BENDIX | 141424 |
| BOSCH | RBR3178 |
| BRAKE HEADQUARTERS | BR02013 |
| BRAKE PRO | 4619353, 4619374 |
| BRAKEBEST | 81-61859, 96088, 96088R, 96088RGS, BD61859 |
| BREMBO | 09.5023.10, 25280 |
| BrakeBest | 96090RGS |
| Bridgestone | 7075418 |
| CALIFORNIA DRUM & ROTOR | 61859 |
| CENTRIC | 120.40013, 121.40013, 125.40013, 125.40013CRY, 126.40013CSL, 126.40013CSR, 126.40013SL, 126.40013SR, 127.40013CL, 127.40013CR, 127.40013L, 127.40013R, 128.40013CL, 128.40013CR, 128.40013L, 128.40013R, 320.40013, 320.40013F |
| CENTURY | 9374 |
| CONTINENTAL-CONTITECH | CW19701 |
| Casting Numbers | 210461-C, 31781, 325070, 6821 |
| Centric Parts | 120.40013, 121.40013, 125.40013, 125.40013CRY, 126.40013CSL, 126.40013CSR, 126.40013SL, 126.40013SR, 127.40013CL, 127.40013CR, 127.40013L, 127.40013R, 128.40013CL, 128.40013CR, 128.40013L, 128.40013R, 320.40013, 320.40013F |
| DAYTON WALTHER | D7938 |
| DELPHI | RB64 |
| DURA CORP | BR3178 |
| DuraGo | BR3178 |
| EIS BRAKES | D17263 |
| EUROROTOR | HO523 |
| FADE FREE | 61859 |
| GIRLING | GR811 |
| GREN | 43402 |
| GUARDIAN | 52-61859 |
| HONDA | 45251SB2780, 45251SB2781, 45251SB2782 |
| INTERBRAKES | HO141V |
| ITM ENGINE COMPONENTS | 1600920 |
| MAGMA PRODUCTS | PSR263014 |
| MCI | 3901 |
| MIDAS | BR1561 |
| MIGHTY DISTRIBUTING SYSTEM | 3178 |
| NEWTEK AUTOMOTIVE | 3178 |
| Newtek Automotive USA | 3178 |
| PARTS MASTER | P61859 |
| PRONTO | BR3178 |
| QUALIS | 3178 |
| QUALITEE INTERNATIONAL | 64-71-010 |
| QUALITY BRAND | 3178 |
| QUINTON HAZELL | BDC3591 |
| ROADMATES | 526590 |
| ROCKHILL | 3178 |
| STANDARD ROTORS AND DRUMS | 3178 |
| THE UNIVERSAL GROUP | 115780 |
| TRUSTAR | 471010, R71010 |
| TRW | DF1963S |
| UAP | 3178 |
| Universal | 115780 |
| VERA | 3405078 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50423 |
| WAGNER | BD61859 |
| WAGNER BRAKE | BD125011, BD61859, SB96088 |
| WINHERE | YH2003 |
| WORLDPAC | 1427-732126 |
RAYBESTOS 96088 Fits Vehicles
- Honda CRX (1988-1991)
- Honda Civic (1988-1991)
- Acura Integra (1986-1989)
