(888) 312-8812 Login SignupRAYBESTOS 76194 Disc Brk Rotor
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

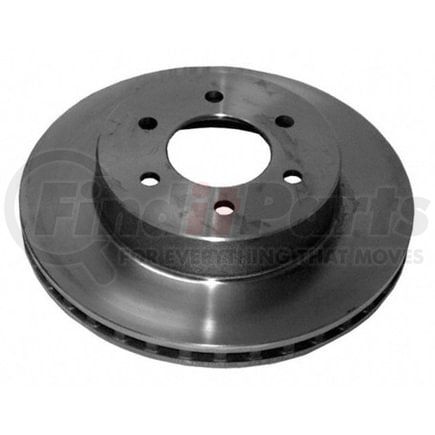

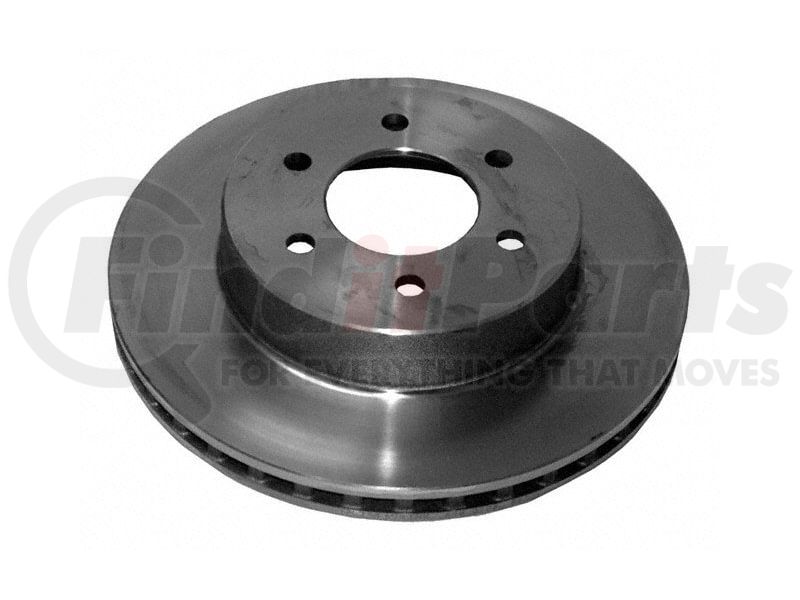

RAYBESTOS 76194 Part Description
Manufacturer
Product Description
Disc Brk Rotor
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
Disc Brake Rotor F Weight 9.5 WHEEL HUB ASSEMBLY Wheel Bearing and Hub Assembly Wheel Bearing and Hub Assembly
712125
by RAYBESTOSRAYBESTOS 76194 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.901 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.89 IN |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.543 IN |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.945 IN |
| Outside Diameter | 11.29 IN |
| Overall Height | 2.52 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 73.7 MM |
| Discard Thickness | 22.6 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 13.8 MM |
| Nominal Thickness | 24 MM |
| Outside Diameter | 286.75 MM |
| Overall Height | 64 MM |
Additional Information
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
RAYBESTOS 76194 Cross References
| Brand | Part Number |
|---|---|
| 030999297600, 121.67020 | |
| Advance Auto Parts | 141577, YH141577 |
| American Remanufactured | 789-40020, 89-40020 |
| AutoZone | 5348, 5348B, DL5348 |
| Autopart International | 25566 |
| Autospecialty | AR8720, AR8720E |
| Autoxtra | AX5348 |
| Bendix | 141577 |
| Bosch | 16010185 |
| Brake Headquarters | BR53431 |
| Brake Pro | 4612108 |
| BrakeBest | 16010185, 76194, 76194R, 76194RGS, 81-125166, BD125166 |
| Brembo | 09.7896.85, 27064 |
| CENTRIC | 121.67020 |
| California Drum & Rotor | 125166 |
| Centric Parts | 120.67020, 121.67020, 227.67020L, 227.67020R, 320.67020F |
| Century | 7069 |
| Chrysler | 52006241 |
| Continental-ContiTech | CW24718 |
| Delphi | RB645 |
| Dura Corp | BR5348 |
| DuraGo | BR5348 |
| EIS Brakes | D17546 |
| Eurorotor | 5372 |
| GREN | 613402 |
| Guardian | 52-125166 |
| MCI | 6029 |
| Midas | BR1790 |
| Mighty Distributing System | 5348 |
| Monroe Brakes | BD125166 |
| Newtek Automotive USA | 5348 |
| PRONTO | BR5348 |
| Parts Master | P125166 |
| Qualis | 5348 |
| Quality Brand | 5348 |
| Roadmates | 526165 |
| Rockhill | 5348 |
| Standard Rotors and Drums | 5348 |
| UAP | 5348 |
| Universal | 103481 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50645 |
| WAGNER | BD125166 |
| Wagner Brake | BD125166 |
| Winhere | 442165, YH2165 |
RAYBESTOS 76194 Fits Vehicles
- Dodge Dakota (1991-1996)
