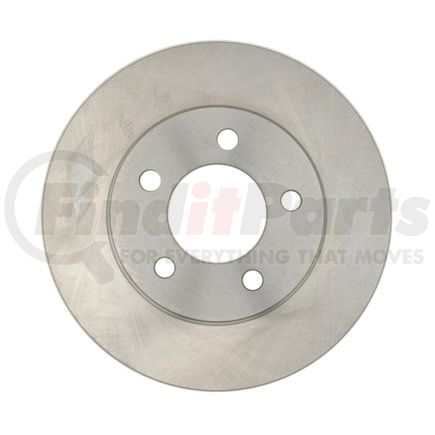

RAYBESTOS 66204 Part Description
Manufacturer
Product Description
Disc Brk Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
Disc Brake Rotor F Weight 9.5 WHEEL HUB ASSEMBLY Wheel Bearing and Hub Assembly Wheel Bearing and Hub Assembly
712125
by RAYBESTOSRAYBESTOS 66204 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.797 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.974 IN |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Diameter | 4.25 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.025 IN |
| Outside Diameter | 10.16 IN |
| Overall Height | 1.81 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 71.05 MM |
| Discard Thickness | 24.75 MM |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 107.95 MM |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 258.05 MM |
| Overall Height | 45.95 MM |
Additional Information
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
RAYBESTOS 66204 Cross References
| Brand | Part Number |
|---|---|
| 217-1022 | |
| Advance Auto Parts | 141741, 3563650, YH141741 |
| American Remanufactured | 789-34033, 89-34033 |
| AutoZone | 5470, 5470B, DL5470 |
| Autopart International | 25060 |
| Autospecialty | AR8133, AR8133E |
| Autoxtra | 125169, 8066204, AX5470 |
| Bendix | 141741 |
| Bosch | RBR5470 |
| Brake Headquarters | BR54543 |
| Brake Pro | 4611999 |
| BrakeBest | 66204, 66204R, 66204RGS, 81-125169, BD125169 |
| Brembo | 09.7996.85, 27108 |
| CENTRIC | 121.61033 |
| California Drum & Rotor | 125169 |
| Centric Parts | 120.61033, 121.61033, 125.61033, 126.61033CSL, 126.61033CSR, 126.61033SL, 126.61033SR, 127.61033CL, 127.61033CR, 127.61033L, 127.61033R |
| Century | 6057 |
| Continental-ContiTech | CW26711 |
| Dayton Walther | D5007 |
| Delphi | RB273 |
| Dura Corp | BR5470 |
| EIS Brakes | D17532 |
| EUCLID | E-12318 |
| Eurorotor | 5470 |
| Fade Free | 125169 |
| Ford | F2DZ1125A, F2DZ1125B |
| GREN | 635402 |
| Guardian | 52-125169 |
| MCI | 6056 |
| Midas | BR1765 |
| Mighty Distributing System | 5470 |
| Monroe Brakes | BD125169 |
| Motorcraft | BRR48 |
| Newtek Automotive USA | 5470 |
| PRONTO | BR5470 |
| Parts Master | P125169 |
| Qualis | 5470 |
| Qualitee International | 64-92-710 |
| Quality Brand | 5470 |
| Roadmates | 526145 |
| Rockhill | 5470, 5570 |
| Sears | 17883 |
| Standard Rotors and Drums | 5470 |
| TruStar | 492710, R92710 |
| UAP | 5470 |
| Universal | 102700 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50559 |
| WAGNER | BD125169 |
| Wagner Brake | BD125169, SB66204 |
| Winhere | 442306, YH2306 |
RAYBESTOS 66204 Fits Vehicles
- Lincoln Continental (1991-1992)
- Mercury Sable (1991-1993)
- Ford Taurus (1991-1993)
