(888) 312-8812 Login SignupRAYBESTOS 8528 Raybestos Specialty - Truck Brake Rotor
$332.94
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 8528 Part Description
Manufacturer
Product Description

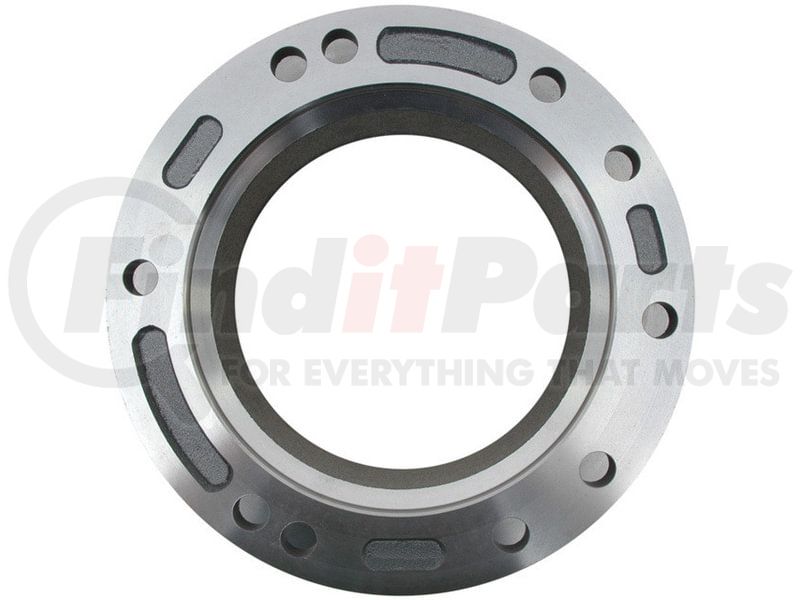

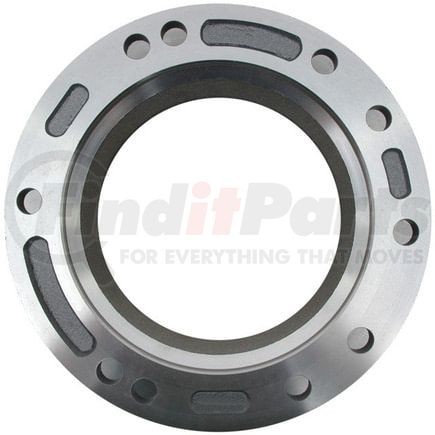

Raybestos Specialty - Truck Brake Rotor
Application Summary
1993-1990 International 4900 Front, 1989-1983 International S1853 Front, 1993-1990 International 3800 Front, 1989-1984 International S1753 Front, 1985-1980 International S1723 Front, 1993-1990 International 4700 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 8528 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 9.187 IN |
| Center Hole Diameter | 233.35 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.32 IN |
| Discard Thickness | 33.55 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 11.25 IN |
| Mounting Bolt Hole Circle Diameter | 285.75 MM |
| Mounting Bolt Hole Diameter | 0.776 IN |
| Mounting Bolt Hole Diameter | 19.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.435 IN |
| Nominal Thickness | 36.45 MM |
| Outside Diameter | 15 IN |
| Outside Diameter | 381 MM |
| Overall Height | 4.49 IN |
| Overall Height | 114.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999966209 |
RAYBESTOS 8528 Cross References
| Brand | Part Number |
|---|---|
| 29545809, 30999966209 | |
| ADVANCE AUTO PARTS | YH141493, YH141493C, YH141493P |
| AMERICAN REMANUFACTURED | 89-54006 |
| AUTOSPECIALTY | AR9306, AR9306E |
| AUTOXTRA | 60870 |
| AUTOZONE | 5603, 5603DG |
| BENDIX | 141493 |
| BRAKEBEST | 8528, 8528RGS |
| CALIFORNIA DRUM & ROTOR | 125244 |
| CENTRIC | 120.83006, 121.83006 |
| Casting Numbers | 23-122920 |
| Centric Parts | 120.83006, 121.83006 |
| DAYTON WALTHER | 23-122920 |
| DURA CORP | BR5603 |
| DuraGo | BR5603 |
| EIS BRAKES | D17479 |
| EUCLID | E-8902 |
| GUNITE | D6128A, R6128A |
| INTERNATIONAL HARVESTER (IHC) | 1648517C1 |
| MERITOR | 23-122920-002 |
| MIGHTY DISTRIBUTING SYSTEM | 5603 |
| QUALIS | 5603 |
| THE UNIVERSAL GROUP | 106030 |
| UAP | 5603 |
| Universal | 106030 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50595 |
| WAGNER | BD125244 |
| WAGNER BRAKE | BD125244 |
RAYBESTOS 8528 Fits Vehicles
- International 1654 (1983-1989)
- International F1924 (1979-1981)
- International 1955 (1979-1982)
- International 1954 (1979-1982)
- International 1925 S (1979-1982)
- International 1924 S (1979-1982)
- International 1754 (1979-1989)
- International 1724 (1979-1985)
- International 2375 S (1983-1986)
- International 2276 S (1983-1986)
- International S2554 (1981-1989)
- International S2375 (1984, 1986)
- International S2524 (1980-1982)
- International S2155 (1984-1989)
- International S2125 (1980-1981)
- International F1954 (1979-1982, 1986-1989)
- International S1955 (1981-1989)
- International S1954 (1981-1989)
- International S1925 (1980-1982)
- International S1924 (1980-1982)
- International S1854 (1983-1989)
- International S1853FC (1987-1989)
- International S1824 (1983-1985)
- International 4600UH (1990)
- International 1652UPS (1990-1991, 1993, 1995-1997)
- International Cargostar (1983-1986)
- International 3800 (1990-1993)
- International 3600 (1992-1993)
- International 1854 (1983-1989)
- International 1824 (1983-1984)
- International S1853 (1983-1989)
- International S1754 (1981-1989)
- International S1753 (1984-1989)
- International S1724 (1980-1984)
- International S1723 (1980-1985)
- International S1654LP (1988-1989)
- International S1654 (1984-1989)
- International S1624 (1980-1982)
- International 7100 (1990-1995)
- International 4900 (1990-1993)
- International 4800 (1990-1993)
- International 4700LP (1990-1993)
- International 4700 (1990-1993)
- International 4600LP (1990-1993)
- International 4600 (1990-1993)
- International 3900FC (1991-1993)
- International 3700 (1990-1993)
- International M1600 Metro II (1987-1990)
- International M1400 Metro II (1987-1990)
- International 1652SC (1986-1997)
- International 1452SC (1987-1992)
