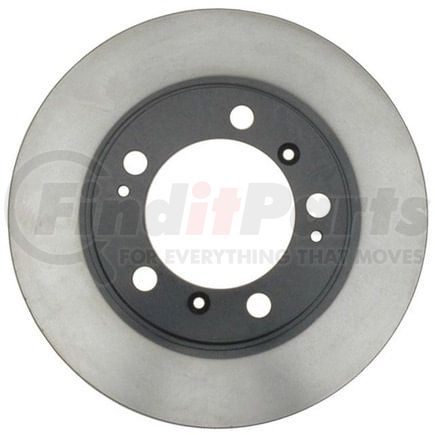

RAYBESTOS 96852 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-1997 Porsche Boxster Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96852 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.87 IN |
| Center Hole Diameter | 98.3 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.606 IN |
| Mounting Bolt Hole Diameter | 15.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 11.49 IN |
| Outside Diameter | 291.85 MM |
| Overall Height | 2.635 IN |
| Overall Height | 66.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999399687 |
RAYBESTOS 96852 Cross References
| Brand | Part Number |
|---|---|
| 030999399687, 120.37031 | |
| ADVANCE AUTO PARTS | YH145173, YH145173C, YH145173P |
| AMERICAN REMANUFACTURED | 89-82033 |
| ATE BRAKE PRODUCTS | 420176, SP20176 |
| AUTOZONE | 34174, 34174DG |
| BECK/ARNLEY | 083-2729 |
| BENDIX | 145173 |
| BOSCH | 42011148 |
| BRAKEBEST | 42011148, 96852, 96852RGS |
| BREMBO | 25796 |
| CENTRIC | 120.37031, 121.37031, 125.37031, 125.37031CRY, 126.37031CSL, 126.37031CSR, 126.37031SL, 126.37031SR, 127.37031CL, 127.37031CR, 127.37031L, 127.37031R, 128.37031CL, 128.37031CR, 128.37031L, 128.37031R, 128.37041CRY |
| Casting Numbers | 211366-C |
| Centric Parts | 120.37031, 121.37031, 125.37031, 125.37031CRY, 126.37031CSL, 126.37031CSR, 126.37031SL, 126.37031SR, 127.37031CL, 127.37031CR, 127.37031L, 127.37031R, 128.37031CL, 128.37031CR, 128.37031L, 128.37031R, 128.37041CRY |
| DURA CORP | BR34174 |
| DuraGo | BR34174 |
| Dynamic Friction Company | 604-02029 |
| MIGHTY DISTRIBUTING SYSTEM | 34174 |
| N/A | 120.37041, 121.37041, 128.37041, 228.37041 |
| NEWTEK AUTOMOTIVE | 34174 |
| Newtek Automotive USA | 34174 |
| POWERSTOP | EBR621EVC |
| QUALIS | 34174 |
| VAICO | V4580005 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51450 |
| VOLKSWAGEN | 98635240104 |
| WAGNER | PAB482, BD180153 |
| Wagner Brake | BD180153 |
RAYBESTOS 96852 Fits Vehicles
- Porsche Boxster (1997-2004)
