RAYBESTOS 680375 Part Description
Manufacturer
Product Description

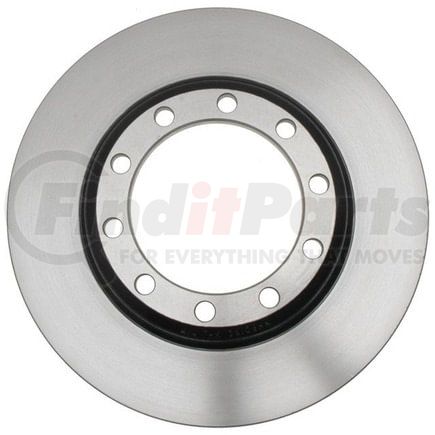

Raybestos Specialty - Truck Brake Rotor
Application Summary
2003-2000 Ford F650 Rear, 2003-2000 Ford F750 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680375 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 6 IN |
| Center Hole Diameter | 152.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.42 IN |
| Discard Thickness | 36.05 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.534 IN |
| Nominal Thickness | 38.95 MM |
| Outside Diameter | 15.373 IN |
| Outside Diameter | 390.45 MM |
| Overall Height | 3.391 IN |
| Overall Height | 86.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352498262 |
RAYBESTOS 680375 Cross References
| Brand | Part Number |
|---|---|
| ASH85854, 829352498262 | |
| BENDIX | PRT6083 |
| BRAKEBEST | 680375, 680375RGS |
| CENTRIC | 120.79025, 121.79025 |
| Centric Parts | 120.79025, 121.79025 |
| DURA CORP | BR54139, BR901082 |
| DuraGo | 901082, BR901082 |
| EUCLID | E-11311, E-12521 |
| FORD | YC3Z2C026AA |
| MERITOR | 23-123498-002, 23123498002 |
| NEWTEK AUTOMOTIVE | 54139 |
| Newtek Automotive USA | 54139 |
| PRONTO | BR901082 |
| Qualis | 42272 |
| UAP | 54139 |
| WAGNER | BD126362 |
| WAGNER BRAKE | BD126362 |
RAYBESTOS 680375 Fits Vehicles
- Ford F-750 (2000-2003)
- Ford F-650 (2000-2003)
