RAYBESTOS 96486 Part Description
Manufacturer
Product Description

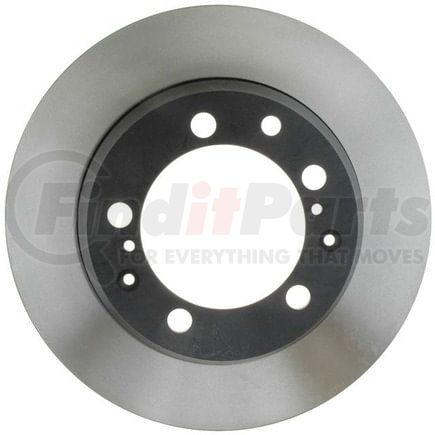

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1994-1991 Porsche 911 Rear Right
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96486 Specifications
Product Attributes
| Center Hole Diameter | 4.056 IN |
| Center Hole Diameter | 103 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.607 IN |
| Mounting Bolt Hole Diameter | 15.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 11.76 IN |
| Outside Diameter | 298.7 MM |
| Overall Height | 2.91 IN |
| Overall Height | 73.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999968647 |
RAYBESTOS 96486 Cross References
| Brand | Part Number |
|---|---|
| 030999968647, 121.37033 | |
| ADVANCE AUTO PARTS | YH145100, YH145100C, YH145100P |
| AUTOZONE | 34132 |
| BENDIX | 145100 |
| BRAKEBEST | 96486, 96486RGS |
| BREMBO | 25798 |
| CENTRIC | 120.37017, 120.37033, 121.37017, 121.37033, 127.37033R, 128.37017 |
| Casting Numbers | 210753-C |
| Centric Parts | 120.37017, 120.37033, 121.37017, 121.37033, 127.37033R, 128.37017 |
| DELPHI | RB576 |
| DURA CORP | BR34132 |
| EUROROTOR | PO284R |
| GREN | 442602 |
| MIGHTY DISTRIBUTING SYSTEM | 34132 |
| NEWTEK AUTOMOTIVE | 34132 |
| Newtek Automotive USA | 34132 |
| PORSCHE | 96535204200 |
| PRONTO | BR34130 |
| QUALIS | 34132 |
| UAP | 34132 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51215 |
| VOLKSWAGEN | 96535204201 |
RAYBESTOS 96486 Fits Vehicles
- Porsche 911 (1991-1994)
