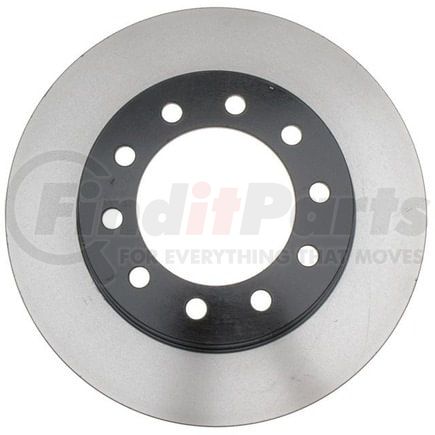

RAYBESTOS 680305 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2016-2005 Ford F-550 Super Duty Front, 2016-2005 Ford F-450 Super Duty Front, 2007-2006 International CF600 Front, 2007-2006 International CF500 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680305 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.09 IN |
| Center Hole Diameter | 129.3 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.472 IN |
| Discard Thickness | 37.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Mounting Bolt Hole Circle Diameter | 170 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 39 MM |
| Outside Diameter | 14.53 IN |
| Outside Diameter | 369.05 MM |
| Overall Height | 3.875 IN |
| Overall Height | 98.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352331590 |
RAYBESTOS 680305 Cross References
| Brand | Part Number |
|---|---|
| 8216036P, 829352331590 | |
| ADVANCE AUTO PARTS | YH145615, YH145615C, YH145615P, YH507783P |
| AUTOXTRA | AX54128 |
| AUTOZONE | 54128, 54128DG, 54128DL, DL54128 |
| Advance Auto Parts | G12407SD |
| BENDIX | 145615, PRT5615 |
| BOSCH | 20010476 |
| BRAKEBEST | 20010476, 680305, 680305FZN, 680305R, 680305RGS |
| BREMBO | 27410 |
| BrakeBest | 680306RGS |
| CENTRIC | 120.65111, 120.65111CRY, 121.65111, 126.65111CSL, 126.65111CSR, 126.65111SL, 126.65111SR, 127.65111L, 127.65111R, 320.65111, 320.65111F |
| Casting Numbers | 211686-C, 326215 |
| Centric Parts | 120.65111, 120.65111CRY, 121.65111, 126.65111CSL, 126.65111CSR, 126.65111SL, 126.65111SR, 127.65111L, 127.65111R, 320.65111, 320.65111F |
| DURA CORP | BR54128 |
| DuraGo | BR54128, BR54128-02 |
| FORD | 5C3Z1125CA |
| MAGMA PRODUCTS | PSR207298 |
| MIGHTY DISTRIBUTING SYSTEM | 54128 |
| MOTORCRAFT | BRR147 |
| Motorcraft | BRRF65 |
| NEOTEK | 1071056GF |
| NEWTEK AUTOMOTIVE | 54128 |
| Newtek Automotive USA | 54128 |
| POWERSTOP | AR85113EVC |
| PROMAX | 14-54128 |
| PRONTO | BR54128 |
| Parts Master | 126277 |
| Performance Friction | 368.098.01 |
| Qualis | 54128 |
| TopNotch | TN680305GEO |
| UAP | 54128 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51722 |
| WABCO | PS126277 |
| WABCO - Archived | PS126277 |
| WAGNER | BD126277E |
| WAGNER BRAKE | BD126277 |
| WINHERE | 6620511 |
| WORLDPAC | 1407-26923, 1427-712954 |
| Wagner Brake | BD126277E |
RAYBESTOS 680305 Fits Vehicles
- International CF600 (2006-2007)
- International CF500 (2006-2007)
- Ford F-350 Super Duty (2015-2016)
- Ford F-450 Super Duty (2005-2016)
- Ford F-550 Super Duty (2005-2016)
