RAYBESTOS 980348 Part Description
Manufacturer
Product Description

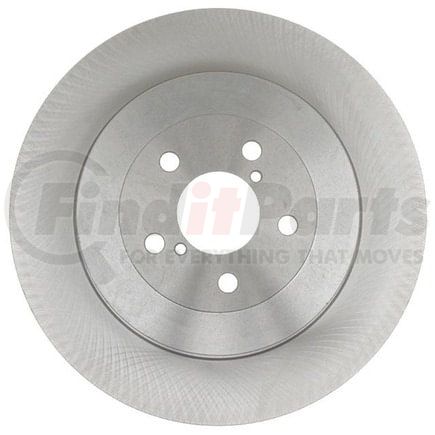

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004 Subaru Impreza Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980348 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.284 IN |
| Center Hole Diameter | 58 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.497 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 12.441 IN |
| Outside Diameter | 316 MM |
| Overall Height | 2.646 IN |
| Overall Height | 67.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | JP |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352375464 |
RAYBESTOS 980348 Cross References
| Brand | Part Number |
|---|---|
| 901284MM, 829352375464 | |
| ADVANCE AUTO PARTS | YH200378 |
| BRAKEBEST | 980348, 980348RGS |
| BREMBO | 09.7813.1X, 09.7813.11 |
| CENTRIC | 120.47020, 121.47020, 125.47020, 125.47020CRY, 126.47020CSL, 126.47020CSR, 126.47020SL, 126.47020SR, 127.47020L, 127.47020R, 128.47020L, 128.47020R |
| Centric Parts | 120.47020, 121.47020, 125.47020, 125.47020CRY, 126.47020CSL, 126.47020CSR, 126.47020SL, 126.47020SR, 127.47020L, 127.47020R, 128.47020L, 128.47020R |
| DURA CORP | BR31397 |
| DuraGo | BR31397 |
| MAGMA PRODUCTS | PSR523013 |
| NEWTEK AUTOMOTIVE | 31397 |
| Newtek Automotive USA | 31397 |
| PROMAX | 14-31397 |
| QUALIS | 44705 |
| SUBARU | 26700FE000 |
| TRW | 6000 |
| UAP | 31397 |
| WAGNER | BD126216 |
| WAGNER BRAKE | BD126216 |
| WINHERE | 4420124 |
RAYBESTOS 980348 Fits Vehicles
- Subaru Impreza (2004)
