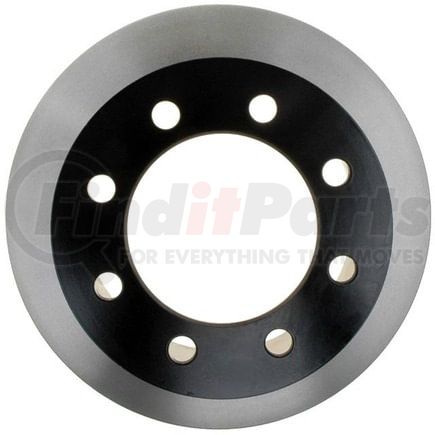

(888) 312-8812 Login SignupRAYBESTOS 780020 Raybestos Specialty - Truck Brake Rotor
$15199
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Jul 8
RAYBESTOS 780020 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2002-2000 Dodge Ram 2500 Rear, 2002-2001 Dodge Ram 3500 Rear, 2002-2001 Dodge Ram 4000 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780020 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.84 IN |
| Center Hole Diameter | 122.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 1.118 IN |
| Discard Thickness | 28.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.682 IN |
| Mounting Bolt Hole Diameter | 17.3 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 12.73 IN |
| Outside Diameter | 323.35 MM |
| Overall Height | 5.15 IN |
| Overall Height | 130.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730999814 |
RAYBESTOS 780020 Cross References
| Brand | Part Number |
|---|---|
| 77416923, 747730999814 | |
| ADVANCE AUTO PARTS | 145357, YH145357, YH145357C, YH145357P |
| AMERICAN REMANUFACTURED | 89-40051 |
| AUTOPARTSOURCE | 491220 |
| AUTOSPECIALTY | AR8753, AR8753E |
| AUTOXTRA | 125760, 80780020, AX53003 |
| AUTOZONE | 53003, 53003DG, DL53003 |
| BENDIX | 145357 |
| BOSCH | 16010178 |
| BRAKEBEST | 16010178, 780020, 780020FZN, 780020PER, 780020R, 780020RGS, 81-125760, BD125760 |
| BREMBO | 09.9042.85, 27272 |
| BrakeBest | 680021RGS |
| CENTRIC | 120.67051, 120.67051CRY, 121.67051, 126.67051CSL, 126.67051CSR, 126.67051SL, 126.67051SR, 127.67051CL, 127.67051CR, 127.67051L, 127.67051R, 320.67051F |
| CHRYSLER | 52009932AA |
| Casting Numbers | 211375-C, 2539804, 325550 |
| Centric Parts | 120.67051, 120.67051CRY, 121.67051, 126.67051CSL, 126.67051CSR, 126.67051SL, 126.67051SR, 127.67051CL, 127.67051CR, 127.67051L, 127.67051R, 320.67051F |
| DURA CORP | BR53003 |
| DuraGo | BR53003 |
| EUCLID | E-12395 |
| GUARDIAN | 52-125760 |
| MAGMA PRODUCTS | PSR145152 |
| MIGHTY DISTRIBUTING SYSTEM | 53003 |
| MONROE BRAKES | BD125760 |
| NEOTEK | 107059GF |
| NEWTEK AUTOMOTIVE | 53003 |
| Newtek Automotive USA | 53003 |
| POWERSTOP | AR8753EVC |
| PROMAX | 14-53003 |
| PRONTO | BR53003 |
| Parts Master | 125760 |
| QUALIS | 53003 |
| QUALITY BRAND | Q4159 |
| STANDARD ROTORS AND DRUMS | 53003 |
| THE UNIVERSAL GROUP | 103767 |
| UAP | 53003 |
| Universal | 103767 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51457 |
| WABCO | PS125760 |
| WABCO - Archived | PS125760 |
| WAGNER | BD125760, BD125760E |
| WAGNER BRAKE | BD125760 |
| WINHERE | 6620174 |
| WORLDPAC | 1407-25479 |
| Wagner Brake | BD125760E |
RAYBESTOS 780020 Fits Vehicles
- Dodge Ram 4000 (2001-2002)
- Dodge Ram 3500 (2001-2002)
- Dodge Ram 2500 (2000-2002)
