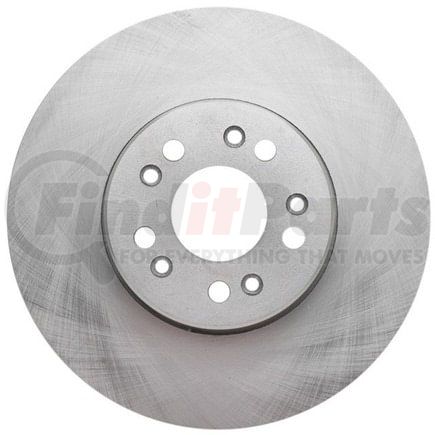

(888) 312-8812 Login SignupRAYBESTOS 96838 Raybestos Specialty - Street Performance Brake Rotor
$132.53
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96838 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1999-1994 Mercedes-Benz S320 Front, 1999-1994 Mercedes-Benz S500 Front, 1999-1995 Mercedes-Benz S420 Front, 1999-1994 Mercedes-Benz S600 Front, 1993-1992 Mercedes-Benz 500SEL Front, 1993-1992 Mercedes-Benz 300SE Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96838 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.079 IN |
| Discard Thickness | 27.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 3.228 IN |
| Overall Height | 82 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00753497986516 |
RAYBESTOS 96838 Cross References
| Brand | Part Number |
|---|---|
| 753497986516, 120.35023 | |
| ADVANCE AUTO PARTS | 832478, YH145373, YH145373C |
| ATE BRAKE PRODUCTS | 430100, 428127 |
| AUTOXTRA | AX34112 |
| AUTOZONE | 34112 |
| BENDIX | 145373 |
| BOSCH | 36010947, 36010963 |
| BRAKEBEST | 36010947, 36010963, 96838, 96838R, 96838RGS |
| BREMBO | 09.8726.10 |
| CENTRIC | 120.35023, 121.35023, 125.35023, 125.35023CRY, 126.35023CSL, 126.35023CSR, 126.35023SL, 126.35023SR, 127.35023L, 128.35023L, 320.35023H |
| CONTINENTAL-CONTITECH | CW28127 |
| Casting Numbers | 325914 |
| Centric Parts | 120.35023, 121.35023, 125.35023, 125.35023CRY, 126.35023CSL, 126.35023CSR, 126.35023SL, 126.35023SR, 127.35023L, 128.35023L, 320.35023H |
| DURA CORP | BR34112 |
| DuraGo | BR34047, BR34112 |
| GREN | 432902 |
| MERCEDES-BENZ | 1404210912, 1404211012 |
| MIGHTY DISTRIBUTING SYSTEM | 34112 |
| NEWTEK AUTOMOTIVE | 34112 |
| Newtek Automotive USA | 34112 |
| PILENGA | V186 |
| PROMAX | 14-34112 |
| PRONTO | BR34112 |
| QUALIS | 34112 |
| QUALITY BRAND | 34112 |
| Qualis | 34047, 45054 |
| TRW | 2593, 2595 |
| UAP | 34047, 34112 |
| VAICO | V3080052 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51491 |
| WAGNER | BD125643 |
| WAGNER BRAKE | BD125643 |
| WINHERE | 442332GBL |
| WORLDPAC | 1427-732141 |
RAYBESTOS 96838 Fits Vehicles
- Mercedes-Benz S600 (1994-1999)
- Mercedes-Benz S500 (1994-1999)
- Mercedes-Benz S420 (1995-1999)
- Mercedes-Benz S350 (1994-1995)
- Mercedes-Benz S320 (1994-1999)
- Mercedes-Benz CL600 (1998-1999)
- Mercedes-Benz CL500 (1998-1999)
- Mercedes-Benz 600SEC (1993)
- Mercedes-Benz 600SEL (1992-1993)
- Mercedes-Benz 500SEL (1992-1993)
- Mercedes-Benz 500SEC (1993)
- Mercedes-Benz 400SEL (1993)
- Mercedes-Benz 400SE (1992)
- Mercedes-Benz 300SE (1992-1993)
- Mercedes-Benz 300SD (1992-1993)
