(888) 312-8812 Login SignupRAYBESTOS 580264 Raybestos Specialty - Street Performance Brake Rotor
$15649
Limited availability at this price!
1 Day Lead Time
Get as soon as Wednesday, Sep 30
RAYBESTOS 580264 Part Description
Manufacturer
Product Description

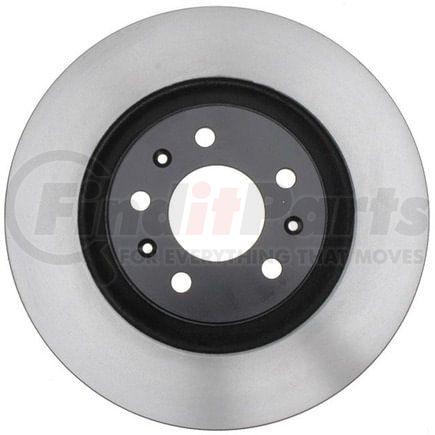

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2007-2006 Cadillac CTS Front, 2008-2005 Cadillac STS Front, 2005-2004 Pontiac Bonneville Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580264 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.209 IN |
| Discard Thickness | 30.7 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.563 IN |
| Mounting Bolt Hole Diameter | 14.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.27 IN |
| Nominal Thickness | 32.25 MM |
| Outside Diameter | 12.715 IN |
| Outside Diameter | 322.95 MM |
| Overall Height | 2.04 IN |
| Overall Height | 51.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352293911 |
RAYBESTOS 580264 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-0915 |
| ADVANCE AUTO PARTS | 145596, YH145596 |
| AUTOPARTSOURCE | 493475 |
| AUTOXTRA | AX55105 |
| AUTOZONE | 55105 |
| BENDIX | 145596 |
| BRAKEBEST | 580264, 580264R, 580264RGS |
| BREMBO | 27338 |
| CENTRIC | 120.62084, 121.62084, 125.62084, 126.62084CSL, 126.62084CSR, 126.62084SL, 126.62084SR, 127.62084CL, 127.62084CR, 127.62084L, 127.62084R, 128.62084CL, 128.62084CR, 128.62084L, 128.62084R, 227.62084L, 227.62084R, 320.62084C, 320.62084H |
| Casting Numbers | 211655-C, 326226 |
| Centric Parts | 120.62084, 121.62084, 125.62084, 126.62084CSL, 126.62084CSR, 126.62084SL, 126.62084SR, 127.62084CL, 127.62084CR, 127.62084L, 127.62084R, 128.62084CL, 128.62084CR, 128.62084L, 128.62084R, 227.62084L, 227.62084R, 320.62084C, 320.62084H |
| DURA CORP | BR55105, BR5510502 |
| DuraGo | BR55105, BR5510502 |
| GM | 19303811, 89047762 |
| General Motors | 19303811, 89047762 |
| MAGMA PRODUCTS | PSR223084 |
| MIGHTY DISTRIBUTING SYSTEM | 55105 |
| NEOTEK | 1072011GF |
| NEWTEK AUTOMOTIVE | 55105 |
| Newtek Automotive USA | 55105 |
| POWERSTOP | AR82107EVC |
| PROMAX | 14-55105 |
| PRONTO | BR55105 |
| Qualis | 55105 |
| UAP | 55105 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51713 |
| WABCO | PS55105 |
| WABCO - Archived | PS55105 |
| WAGNER | BD126187E, BD126187 |
| WAGNER BRAKE | BD126187 |
| WINHERE | 6620543 |
| WORLDPAC | 1407-26859 |
| Wagner Brake | BD126187E |
RAYBESTOS 580264 Fits Vehicles
- Cadillac CTS (2006-2007)
- Pontiac Bonneville (2004-2005)
- Cadillac STS (2005-2008)
