(888) 312-8812 Login SignupRAYBESTOS 56919 Raybestos Specialty - Truck Brake Rotor
$12749
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jun 30
RAYBESTOS 56919 Part Description
Manufacturer
Product Description

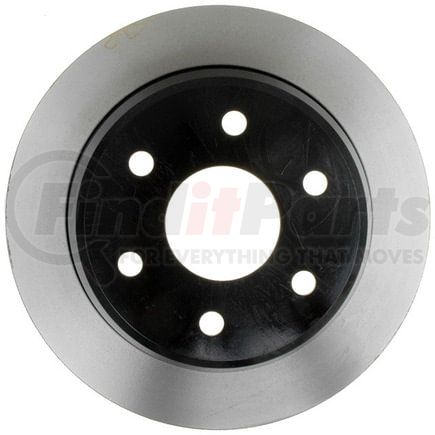

Raybestos Specialty - Truck Brake Rotor
Application Summary
2003-2000 GMC Yukon XL 1500 Rear, 2002 GMC Sierra 1500 Rear, 2003-2002 Cadillac Escalade Rear, 2000 Chevrolet Suburban 1500 Rear, 2006-2000 Chevrolet Sonora Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 56919 Specifications
Product Attributes
| Center Hole Diameter | 3.09 IN |
| Center Hole Diameter | 78.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 13 IN |
| Outside Diameter | 330.2 MM |
| Overall Height | 3.76 IN |
| Overall Height | 95.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730704289 |
RAYBESTOS 56919 Cross References
| Brand | Part Number |
|---|---|
| 74821106, 747730704289 | |
| ACDELCO | 177-870 |
| ADVANCE AUTO PARTS | 145282, N1000191788BRC, YH145282, YH145441C, YH145441P |
| AMERICAN REMANUFACTURED | 89-44045 |
| AUTOPARTSOURCE | 593075, 593545 |
| AUTOSPECIALTY | AR8645, AR8645E |
| AUTOXTRA | 8056919, AX55067 |
| AUTOZONE | 55067, 55067DG, 55067DL, DL55067 |
| Advance Auto Parts | G12489SD |
| Autoxtra | AX55067P |
| BENDIX | 145282 |
| BRAKEBEST | 56919, 56919FZN, 56919PER, 56919R, 56919RGS |
| BREMBO | 09.8608.80, 27050, 27285 |
| CENTRIC | 120.66045CRY, 125.66045, 125.66045CRY, 120.66045 |
| Casting Numbers | 15727134, 211276-C, 325516 |
| Centric Parts | 120.66045CRY, 125.66045, 125.66045CRY, 120.66045, 121.66045, 320.66045 |
| DURA CORP | BR55067, BR5506702 |
| DuraGo | BR55067, BR55067-02 |
| GM | 15712802, 15727134 |
| GUARDIAN | 52-125735 |
| General Motors | 15712802, 15727134 |
| MAGMA PRODUCTS | PSR225215 |
| MIGHTY DISTRIBUTING SYSTEM | 55067 |
| NEOTEK | 107271GF |
| NEWTEK AUTOMOTIVE | 55067 |
| Newtek Automotive USA | 55067 |
| PROMAX | 14-55067 |
| PRONTO | BR55067 |
| QUALIS | 55067 |
| QUALITY BRAND | 55067, Q4036 |
| STANDARD ROTORS AND DRUMS | 55067 |
| THE UNIVERSAL GROUP | 101599 |
| TopNotch | TN56919GEO |
| UAP | 55067 |
| Universal | 101599 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51318 |
| WAGNER | BD126032, BD126032E |
| WAGNER BRAKE | BD125735 |
| WINHERE | 662661, YH2661 |
RAYBESTOS 56919 Fits Vehicles
- Chevrolet Sonora (2000-2006)
- GMC Yukon XL 1500 (2000-2003)
- GMC Sierra 1500 (2002)
- Chevrolet Suburban 1500 (2000)
- Cadillac Escalade (2002-2003)
