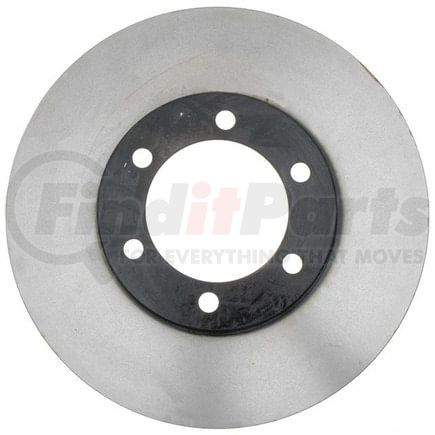

(888) 312-8812 Login SignupRAYBESTOS 980160 Raybestos Specialty - Truck Brake Rotor
$13249
Limited availability at this price!
In Stock
Get it by Tuesday, Sep 8
RAYBESTOS 980160 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2009-2003 Toyota 4Runner Front, 2009-2003 Lexus GX470 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980160 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.26 IN |
| Center Hole Diameter | 108.2 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 13.3 IN |
| Outside Diameter | 337.8 MM |
| Overall Height | 2.64 IN |
| Overall Height | 67.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730872407 |
RAYBESTOS 980160 Cross References
| Brand | Part Number |
|---|---|
| 77416736, 747730872407 | |
| ADVANCE AUTO PARTS | N1000188034APO, YH145457, YH145457C, YH145457P |
| ADVICS | A6F057 |
| ATE BRAKE PRODUCTS | 428194 |
| AUTOPARTSOURCE | 479505 |
| AUTOXTRA | AX31326 |
| AUTOZONE | 31326, 31326DG |
| Autoxtra | AX31326P |
| BECK/ARNLEY | 083-2963 |
| BENDIX | 145457 |
| BRAKEBEST | 50011245, 980160, 980160FZN, 980160PER, 980160R, 980160RGS, BD126089 |
| BREMBO | 09.A204.10, 25858, 09.A204.11 |
| CENTRIC | 120.44127, 120.44127CRY, 121.44127, 126.44127CSL, 126.44127CSR, 126.44127SL, 126.44127SR, 127.44127CL, 127.44127CR, 127.44127L, 127.44127R, 128.44127CL, 128.44127CR, 128.44127L, 128.44127R, 227.44127L, 227.44127R, 320.44127, 321.44127 |
| Casting Numbers | 211558-C, 325996 |
| Centric Parts | 120.44127, 120.44127CRY, 121.44127, 126.44127CSL, 126.44127CSR, 126.44127SL, 126.44127SR, 127.44127CL, 127.44127CR, 127.44127L, 127.44127R, 128.44127CL, 128.44127CR, 128.44127L, 128.44127R, 227.44127L, 227.44127R, 320.44127, 321.44127 |
| DURA CORP | BR31326, BR3132602 |
| DuraGo | BR31326 |
| MAGMA PRODUCTS | PSR565166 |
| MIGHTY DISTRIBUTING SYSTEM | 31326 |
| MONROE BRAKES | BD126089 |
| NAPA BRAKES | SDK6398, TSR9611, TSR9700 |
| NEOTEK | 1063005GF |
| NEWTEK AUTOMOTIVE | 31326 |
| Newtek Automotive USA | 31326 |
| POWERSTOP | JBR975EVC |
| PROMAX | 14-31326 |
| PRONTO | BR31326 |
| QUALIS | 31326 |
| TOYOTA | 4351260150, 4351260151, 4351260160 |
| TRW | DF4494, DF4494S, DF7374S |
| TopNotch | TN980160GEO |
| UAP | 31326 |
| Ultra Brake | TO-6145 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51529 |
| WABCO | PS126089 |
| WABCO - Archived | PS126089 |
| WAGNER | BD126089, BD126089E |
| WAGNER BRAKE | BD126089, BD126089E |
| WINHERE | 662916 |
| WORLDPAC | 1407-78729, 1427-731832 |
RAYBESTOS 980160 Fits Vehicles
- Toyota 4Runner (2003-2009)
- Lexus GX470 (2003-2009)
