(888) 312-8812 Login SignupRAYBESTOS 680105 Raybestos Specialty - Truck Brake Rotor
$15349
Limited availability at this price!
In Stock
Get it by Thursday, Sep 10
RAYBESTOS 680105 Part Description
Manufacturer
Product Description

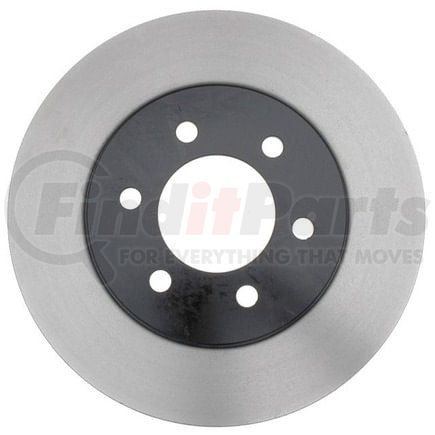

Raybestos Specialty - Truck Brake Rotor
Application Summary
2006-2002 Ford Expedition Front, 2006-2002 Lincoln Navigator Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680105 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.54 IN |
| Center Hole Diameter | 89.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.18 IN |
| Nominal Thickness | 29.95 MM |
| Outside Diameter | 12.99 IN |
| Outside Diameter | 329.95 MM |
| Overall Height | 1.885 IN |
| Overall Height | 47.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00753497928929 |
RAYBESTOS 680105 Cross References
| Brand | Part Number |
|---|---|
| 77416961, 753497928929 | |
| ADVANCE AUTO PARTS | 145367, G12380SD, YH145367, YH145367C, YH145367P |
| AUTOPARTSOURCE | 492455 |
| AUTOSPECIALTY | AR8590, AR8590E |
| AUTOXTRA | AX54099 |
| AUTOZONE | 54099, 54099DG, DL54099 |
| BENDIX | 145367 |
| BRAKEBEST | 20010337, 680105, 680105P, 680105PER, 680105R, 680105RGS, 81-125780, BD125780 |
| BREMBO | 09.B620.10, 27241, 09.B620.11 |
| CENTRIC | 120.65097, 121.65097, 125.65097, 125.65097CRY, 126.65097CSL, 126.65097CSR, 126.65097SL, 126.65097SR, 127.65097L, 127.65097R, 128.65097CL, 128.65097CR, 128.65097L, 128.65097R, 227.65097L, 227.65097R, 320.65097, 320.65097F, 321.65097 |
| CONTINENTAL-CONTITECH | CW30720 |
| Casting Numbers | 211460-C, 325552 |
| Centric Parts | 120.65097, 121.65097, 125.65097, 125.65097CRY, 126.65097CSL, 126.65097CSR, 126.65097SL, 126.65097SR, 127.65097L, 127.65097R, 128.65097CL, 128.65097CR, 128.65097L, 128.65097R, 227.65097L, 227.65097R, 320.65097, 320.65097F, 321.65097 |
| DURA CORP | BR54099, BR5409902 |
| DuraGo | BR54099, BR5409902 |
| FORD | 2L1Z1125AA, 5L1Z1125AA, 5L1Z1125BA, 6L1Z1125A |
| GUARDIAN | 52-125780 |
| MAGMA PRODUCTS | PSR205204 |
| MIGHTY DISTRIBUTING SYSTEM | 54099 |
| MONROE BRAKES | BD125780 |
| MOTORCRAFT | BRR115 |
| Motorcraft | NBRR81 |
| NEOTEK | 1071020GF |
| NEWTEK AUTOMOTIVE | 54099 |
| Newtek Automotive USA | 54099 |
| POWERSTOP | AR8590EVC |
| PROMAX | 14-54099 |
| PRONTO | BR54099 |
| QUALIS | 54099 |
| QUALITY BRAND | Q4161 |
| STANDARD ROTORS AND DRUMS | 54099 |
| THE UNIVERSAL GROUP | 102976 |
| UAP | 2054099 |
| Universal | 102976 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51463 |
| WABCO | PS125780 |
| WABCO - Archived | PS125780 |
| WAGNER | BD125780E, BD125780 |
| WAGNER BRAKE | BD125780 |
| WINHERE | 6620006 |
| WORLDPAC | 1407-25852 |
| Wagner Brake | BD125780E |
RAYBESTOS 680105 Fits Vehicles
- Lincoln Navigator (2002-2006)
- Ford Expedition (2002-2006)
