(888) 312-8812 Login SignupRAYBESTOS 980159 Raybestos Specialty - Truck Brake Rotor
$13099
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 16
RAYBESTOS 980159 Part Description
Manufacturer
Product Description

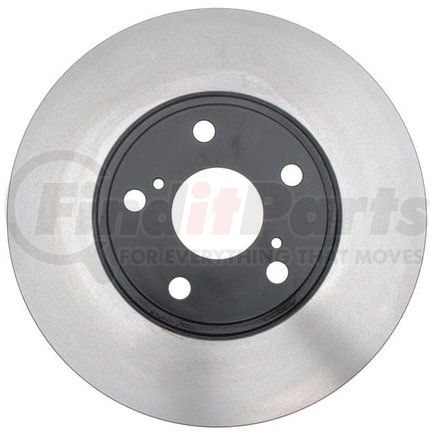

Raybestos Specialty - Truck Brake Rotor
Application Summary
2007-2001 Toyota Highlander Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980159 Specifications
Product Attributes
| Center Hole Diameter | 2.45 IN |
| Center Hole Diameter | 62.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.566 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.65 IN |
| Outside Diameter | 295.9 MM |
| Overall Height | 1.935 IN |
| Overall Height | 49.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730872391 |
RAYBESTOS 980159 Cross References
| Brand | Part Number |
|---|---|
| 77416735, 747730872391 | |
| ADVANCE AUTO PARTS | YH145497 |
| AUTOXTRA | 126060, 80980159, AX31331 |
| AUTOZONE | 31331, 31331DG |
| Autoxtra | AX31331P |
| BECK/ARNLEY | 083-2903 |
| BENDIX | 145497 |
| BRAKEBEST | 50011232, 980159, 980159FZN, 980159R, 980159RGS, BD126060 |
| CENTRIC | 120.44088CRY, 120.44088 |
| Casting Numbers | 211557-C, 325995 |
| Centric Parts | 120.44088, 120.44088CRY, 121.44088 |
| DURA CORP | BR31331 |
| DuraGo | BR31331, BR31331-01 |
| MAGMA PRODUCTS | PSR565162 |
| MIGHTY DISTRIBUTING SYSTEM | 31331 |
| N/A | 126.44088CSL, 126.44088CSR, 126.44088SL, 126.44088SR, 127.44088CL, 127.44088CR, 127.44088L, 127.44088R, 128.44088CL, 128.44088CR, 128.44088L, 128.44088R, 320.44088 |
| NEWTEK AUTOMOTIVE | 31331 |
| Newtek Automotive USA | 31331 |
| POWERSTOP | JBR737EVC |
| PROMAX | 14-31331 |
| PRONTO | BR31331 |
| QUALIS | 31331 |
| QUALITY BRAND | Q613 |
| TOYOTA | 4351248030, 4351248031 |
| UAP | 2031331, 31331 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51591 |
| WABCO | PS126060 |
| WABCO - Archived | PS126060 |
| WAGNER | BD126060, BD126060E |
| WAGNER BRAKE | BD126060, BD126060E |
| WINHERE | 662839 |
RAYBESTOS 980159 Fits Vehicles
- Toyota Highlander (2001-2007)
