(888) 312-8812 Login SignupRAYBESTOS 680167 Raybestos Specialty - Truck Brake Rotor
$102.01
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 680167 Part Description
Manufacturer
Product Description

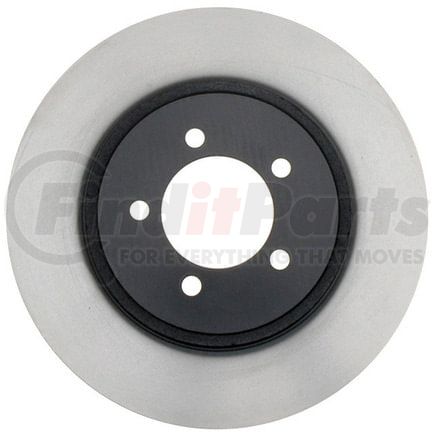

Raybestos Specialty - Truck Brake Rotor
Application Summary
2005-2003 Lincoln Aviator Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680167 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.228 IN |
| Center Hole Diameter | 82 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.413 IN |
| Discard Thickness | 10.5 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 12.71 IN |
| Outside Diameter | 322.85 MM |
| Overall Height | 2.3 IN |
| Overall Height | 58.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352189283 |
RAYBESTOS 680167 Cross References
| Brand | Part Number |
|---|---|
| 78070123, 829352189283 | |
| ADVANCE AUTO PARTS | 145453, YH145453 |
| AUTOXTRA | 126121, 80680167, AX54116 |
| AUTOZONE | 54116 |
| BENDIX | 145453 |
| BOSCH | 20010416 |
| BRAKEBEST | 20010416, 680167, 680167R, 680167RGS, BD126121 |
| BREMBO | 27359 |
| CENTRIC | 120.65094, 121.65094, 126.65094CSL, 126.65094CSR, 126.65094SL, 126.65094SR, 127.65094CL, 127.65094CR, 127.65094L, 127.65094R, 128.65094L, 128.65094R, 320.65094F |
| Casting Numbers | 204202848, 211567-C, 326000 |
| Centric Parts | 120.65094, 121.65094, 126.65094CSL, 126.65094CSR, 126.65094SL, 126.65094SR, 127.65094CL, 127.65094CR, 127.65094L, 127.65094R, 128.65094L, 128.65094R, 320.65094F |
| DURA CORP | BR54116, BR90136 |
| DuraGo | BR54116 |
| FORD | 4C5Z2C026AA, 2C5Z2C026AA, 5C5Z2C026A |
| MIGHTY DISTRIBUTING SYSTEM | 54116 |
| MOTORCRAFT | BRR141 |
| Motorcraft | BRRF272 |
| NEWTEK AUTOMOTIVE | 54116 |
| Newtek Automotive USA | 54116 |
| POWERSTOP | AR8593EVC, AR8681EVC, AR8681XPR |
| PROMAX | 14-54116 |
| PRONTO | BR54116 |
| QUALIS | 54116 |
| UAP | 54116 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51652 |
| WAGNER | BD126121 |
| WAGNER BRAKE | BD126121 |
| WINHERE | 661612 |
| WORLDPAC | 1407-25849 |
RAYBESTOS 680167 Fits Vehicles
- Lincoln Aviator (2003-2005)
