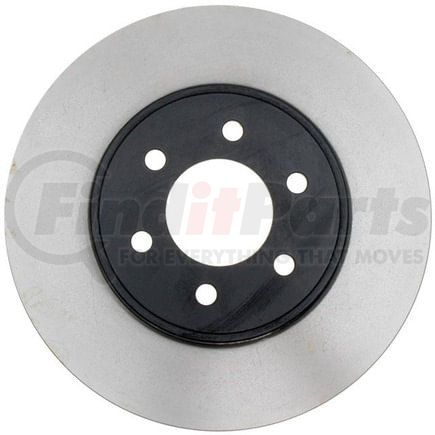

(888) 312-8812 Login SignupRAYBESTOS 780133 Raybestos Specialty - Truck Brake Rotor
$99.23
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 780133 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2003 Dodge Durango Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780133 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.89 IN |
| Center Hole Diameter | 73.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.047 IN |
| Discard Thickness | 26.6 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.542 IN |
| Mounting Bolt Hole Diameter | 13.75 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.105 IN |
| Nominal Thickness | 28.05 MM |
| Outside Diameter | 12.125 IN |
| Outside Diameter | 307.95 MM |
| Overall Height | 2.405 IN |
| Overall Height | 61.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352023327 |
RAYBESTOS 780133 Cross References
| Brand | Part Number |
|---|---|
| 78053683, 829352023327 | |
| ADVANCE AUTO PARTS | 145382, 145546, YH145382 |
| AUTOPARTSOURCE | 491205 |
| AUTOSPECIALTY | AR8755 |
| AUTOZONE | 53012 |
| AutoZone | 53007 |
| BENDIX | 145382 |
| BOSCH | 16010186 |
| BRAKEBEST | 16010186, 780133, 780133R, 780133RGS, 81-126041, BD126041 |
| BREMBO | 27382 |
| CENTRIC | 120.67059, 120.67059CRY, 121.67059, 126.67059CSL, 126.67059CSR, 126.67059SL, 126.67059SR, 127.67059L, 127.67059R, 128.67059L, 128.67059R, 320.67059F |
| CENTURY | C7111 |
| CHRYSLER | 52010418AA |
| Casting Numbers | 137484, 211469-C, 325602 |
| Centric Parts | 120.67059, 120.67059CRY, 121.67059, 126.67059CSL, 126.67059CSR, 126.67059SL, 126.67059SR, 127.67059L, 127.67059R, 128.67059L, 128.67059R, 320.67059F |
| DURA CORP | BR53007, BR90159 |
| DuraGo | BR53007 |
| GUARDIAN | 52-126041 |
| MIGHTY DISTRIBUTING SYSTEM | 53007 |
| NEOTEK | 107067GF |
| NEWTEK AUTOMOTIVE | 53007 |
| Newtek Automotive USA | 53007 |
| PROMAX | 14-53007 |
| PRONTO | BR53007 |
| QUALIS | 53007 |
| QUALITY BRAND | Q4171 |
| STANDARD ROTORS AND DRUMS | 53007 |
| UAP | 53007 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51523 |
| WAGNER | BD126041, BD126041E |
| WAGNER BRAKE | BD126041 |
| WINHERE | 442987 |
| Wagner Brake | BD126041E |
RAYBESTOS 780133 Fits Vehicles
- Dodge Durango (2003)
