(888) 312-8812 Login SignupRAYBESTOS 680130 Raybestos Specialty - Street Performance Brake Rotor
$99.10
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

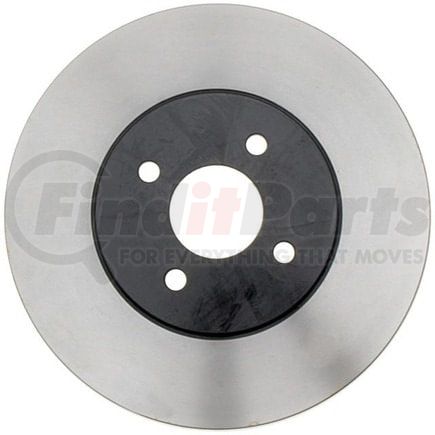

RAYBESTOS 680130 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-2002 Ford Focus Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680130 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.503 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.874 IN |
| Discard Thickness | 22.2 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 4.25 IN |
| Mounting Bolt Hole Diameter | 107.95 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 11.82 IN |
| Outside Diameter | 300.25 MM |
| Overall Height | 1.745 IN |
| Overall Height | 44.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352205037 |
RAYBESTOS 680130 Cross References
| Brand | Part Number |
|---|---|
| 78072089, 829352205037 | |
| ADVANCE AUTO PARTS | YH145273, YH145443 |
| AUTOZONE | 54113 |
| BENDIX | 145443 |
| BOSCH | 20010442 |
| BRAKEBEST | 20010442, 680130, 680130R, 680130RGS, BD125787 |
| BREMBO | 27315 |
| CENTRIC | 120.61071, 121.61071, 125.61071, 125.61071CRY, 126.61071CSL, 126.61071CSR, 126.61071SL, 126.61071SR, 127.61071CL, 127.61071CR, 127.61071L, 127.61071R, 128.61071CL, 128.61071CR, 128.61071L, 128.61071R |
| Casting Numbers | 211574-C, 325988 |
| Centric Parts | 120.61071, 121.61071, 125.61071, 125.61071CRY, 126.61071CSL, 126.61071CSR, 126.61071SL, 126.61071SR, 127.61071CL, 127.61071CR, 127.61071L, 127.61071R, 128.61071CL, 128.61071CR, 128.61071L, 128.61071R |
| DURA CORP | BR54113 |
| DuraGo | BR54113 |
| FORD | 2M5Z1125AA |
| MIGHTY DISTRIBUTING SYSTEM | 54113 |
| MONROE BRAKES | BD125787 |
| MOTORCRAFT | BRR124 |
| NEWTEK AUTOMOTIVE | 54113 |
| Newtek Automotive USA | 54113 |
| PROMAX | 14-54113 |
| PRONTO | BR54113 |
| QUALIS | 54113 |
| QUALITY BRAND | Q4180 |
| UAP | 54113 |
| Ultra Brake | FO-140 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51649 |
| WAGNER | BD125787E, BD125787 |
| WAGNER BRAKE | BD125787 |
| WINHERE | 4420228 |
| Wagner Brake | BD125787E |
RAYBESTOS 680130 Fits Vehicles
- Ford Focus (2002-2004)
