RAYBESTOS 980424 Part Description
Manufacturer
Product Description

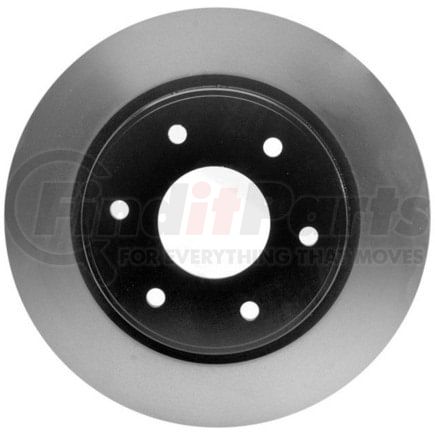

Raybestos Specialty - Truck Brake Rotor
Application Summary
2007-2005 Nissan TITAN Front, 2006-2005 Nissan Armada Front, 2006-2005 INFINITI QX56 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980424 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.232 IN |
| Center Hole Diameter | 82.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.965 IN |
| Discard Thickness | 24.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.654 IN |
| Mounting Bolt Hole Diameter | 16.6 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 12.597 IN |
| Outside Diameter | 319.95 MM |
| Overall Height | 1.7 IN |
| Overall Height | 43.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352483367 |
RAYBESTOS 980424 Cross References
| Brand | Part Number |
|---|---|
| ASH24408, 829352483367 | |
| ADVANCE AUTO PARTS | YH145735C, YH145735P |
| AUTOXTRA | AX900286 |
| AUTOZONE | 44573, DL31425 |
| Autoxtra | AX900286P |
| BENDIX | PRT5735 |
| BOSCH | 40011050, 40011101 |
| BRAKEBEST | 40011050, 40011101, 980424, 980424FZN, 980424R, 980424RGS |
| BREMBO | 09.B639.10 |
| CENTRIC | 120.42090, 121.42090, 125.42090, 125.42090CRY, 126.42090CSL, 126.42090CSR, 126.42090SL, 126.42090SR, 127.42090CL, 127.42090CR, 127.42090L, 127.42090R, 128.42090CL, 128.42090CR, 128.42090L, 128.42090R, 227.42090L, 227.42090R, 320.42090, 321.42090, 120.4209 |
| Casting Numbers | 211783-C, 326297 |
| Centric Parts | 120.42090, 121.42090, 125.42090, 125.42090CRY, 126.42090CSL, 126.42090CSR, 126.42090SL, 126.42090SR, 127.42090CL, 127.42090CR, 127.42090L, 127.42090R, 128.42090CL, 128.42090CR, 128.42090L, 128.42090R, 227.42090L, 227.42090R, 320.42090, 321.42090 |
| DATSUN/NISSAN | 40206ZC00A, 40206ZC00B, 40206ZC01A |
| DURA CORP | BR31425, BR900286 |
| DuraGo | 60301, 900286, BR60301, BR900286, BR900286-02 |
| MAGMA PRODUCTS | PSR425100 |
| NEWTEK AUTOMOTIVE | 31425 |
| Newtek Automotive USA | 31425 |
| Nissan | 40206ZC00A, 40206ZC00B, 40206ZC01A |
| POWERSTOP | JBR1161EVC |
| PROMAX | 14-31425 |
| PRONTO | BR900286 |
| QUALIS | 44573 |
| TRUSTAR | 476235 |
| UAP | 31425 |
| WABCO | PS126575 |
| WABCO - Archived | PS126575 |
| WAGNER | BD126575, BD126575E |
| WAGNER BRAKE | BD126575 |
| WINHERE | 6620681 |
| WORLDPAC | 1407-77136, 1427-530172 |
| Wagner Brake | BD126575E |
RAYBESTOS 980424 Fits Vehicles
- Nissan TITAN (2005-2007)
- Nissan Armada (2005-2006)
- INFINITI QX56 (2005-2006)
