(888) 312-8812 Login SignupRAYBESTOS 96820 Raybestos Specialty - Street Performance Brake Rotor
$10149
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
RAYBESTOS 96820 Part Description
Manufacturer
Product Description

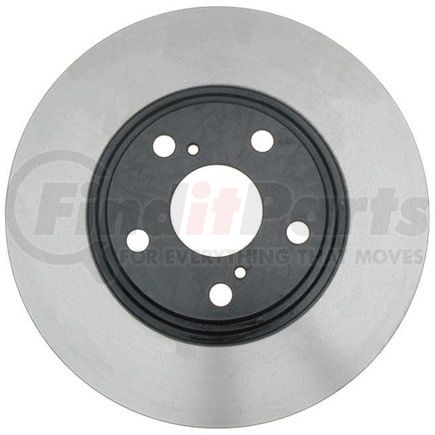

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-2002 Toyota Camry Front, 2003-1999 Lexus RX300 Front, 2006-2004 Lexus ES330 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96820 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.44 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.566 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 11.65 IN |
| Outside Diameter | 295.9 MM |
| Overall Height | 1.94 IN |
| Overall Height | 49.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730845418 |
RAYBESTOS 96820 Cross References
| Brand | Part Number |
|---|---|
| 77410677, 747730845418 | |
| ADVANCE AUTO PARTS | 145324, YH145324, YH145324C, YH145324P |
| AMERICAN REMANUFACTURED | 89-22107 |
| ATE BRAKE PRODUCTS | 428190, 428212 |
| AUTOSPECIALTY | JBR737, JBR737E |
| AUTOXTRA | AX31266 |
| AUTOZONE | 31266, 31266DG, DL31266 |
| AutoZone | 54068 |
| BECK/ARNLEY | 083-2820 |
| BENDIX | 145324 |
| BRAKEBEST | 50011228, 81-125731, 96820, 96820FZN, 96820R, 96820RGS, BD125731 |
| BREMBO | 09.8195.80, 09.A110.10, 25533, 09.A110.11 |
| BrakeBest | 66821RGS, 66822RGS |
| Bridgestone | 7009793 |
| CENTRIC | 120.44088, 121.44088, 126.44088CSL, 126.44088CSR, 126.44088SL, 126.44088SR, 127.44088CL, 127.44088CR, 127.44088L, 127.44088R, 128.44088CL, 128.44088CR, 128.44088L, 128.44088R, 320.44088, 321.44088 |
| CONTINENTAL-CONTITECH | CW28701, CW28707 |
| Casting Numbers | 211247-C, 325590 |
| Centric Parts | 120.44088, 121.44088, 126.44088CSL, 126.44088CSR, 126.44088SL, 126.44088SR, 127.44088CL, 127.44088CR, 127.44088L, 127.44088R, 128.44088CL, 128.44088CR, 128.44088L, 128.44088R, 320.44088, 321.44088 |
| DURA CORP | BR31266, BR3126602 |
| DuraGo | 60404, BR31266, BR3126602, BR31331, BR60404 |
| Eurorotor | TO-6140 |
| MIGHTY DISTRIBUTING SYSTEM | 31266 |
| MONROE BRAKES | BD125731 |
| NEOTEK | 106385GF |
| NEWTEK AUTOMOTIVE | 31266 |
| Newtek Automotive USA | 31266 |
| PEP BOYS | 31266G |
| PROMAX | 14-31266 |
| PRONTO | BR31266 |
| QUALIS | 31266 |
| QUALITEE INTERNATIONAL | 64-79-235 |
| QUALITY BRAND | Q048 |
| Qualis | 31331 |
| STANDARD ROTORS AND DRUMS | 31266 |
| THE UNIVERSAL GROUP | 128228 |
| TOYOTA | 4351248010, 4351248011, 4351248060, 4351248100 |
| TRUSTAR | 479235, R79235 |
| TopNotch | TN96820GEO |
| UAP | 31266 |
| Ultra Brake | TO-6140 |
| Universal | 128228 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51387 |
| WABCO | PS125731 |
| WABCO - Archived | PS125731 |
| WAGNER | BD125731, BD125731E |
| WAGNER BRAKE | BD125731 |
| WINHERE | 662784, YH2784 |
| WORLDPAC | 1407-79938, 1427-523978 |
| Wagner Brake | BD125731E |
| Winhere | 662839 |
RAYBESTOS 96820 Fits Vehicles
- Toyota Highlander (2001-2007)
- Lexus ES300 (2003)
- Lexus ES330 (2004-2006)
- Toyota Camry (2002-2004)
- Lexus RX300 (1999-2003)
