(888) 312-8812 Login SignupRAYBESTOS 980046 Raybestos Specialty - Street Performance Brake Rotor
$8949
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Aug 14
RAYBESTOS 980046 Part Description
Manufacturer
Product Description

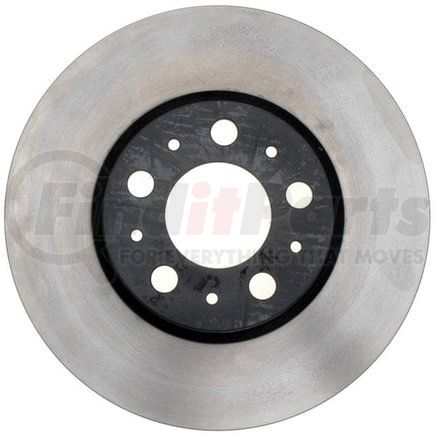

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2009-2001 Volvo S60 Front, 2007-2003 Volvo XC70 Front, 2007-2001 Volvo V70 Front, 2006-1999 Volvo S80 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980046 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 11.24 IN |
| Outside Diameter | 285.5 MM |
| Overall Height | 1.98 IN |
| Overall Height | 50.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352038406 |
RAYBESTOS 980046 Cross References
| Brand | Part Number |
|---|---|
| 829352038406, 120.39029 | |
| ADVANCE AUTO PARTS | N1000331703ZIC, YH145433, YH145433C, YH145433P |
| AMERICAN REMANUFACTURED | 89-92029 |
| API | 1407-25659 |
| ATE BRAKE PRODUCTS | SP26122, 426122 |
| AUTOSPECIALTY | EBR642 |
| AUTOXTRA | AX34207 |
| AUTOZONE | 34207, 34207DG |
| BECK/ARNLEY | 083-2813 |
| BENDIX | 145433 |
| BOSCH | 52011376 |
| BRAKEBEST | 52011376, 980046, 980046FZN, 980046R, 980046RGS |
| BREMBO | 09.8633.10, 09.8633.11, 25659 |
| Brembo | 09.8633.1X, 09.8633.75 |
| CENTRIC | 120.39029, 121.39029, 125.39029, 125.39029CRY, 126.39029CSL, 126.39029CSR, 126.39029SL, 126.39029SR, 127.39029L, 127.39029R, 128.39029L, 128.39029R, 128.39029CL, 128.39029CR, 320.39029, 320.39029H, 321.39029, 2240-4-4S |
| CONTINENTAL-CONTITECH | CW26122 |
| Casting Numbers | 325627 |
| Centric Parts | 120.39029, 121.39029, 125.39029, 125.39029CRY, 126.39029CSL, 126.39029CSR, 126.39029SL, 126.39029SR, 127.39029L, 127.39029R, 128.39029CL, 128.39029CR, 128.39029L, 128.39029R, 320.39029, 320.39029H, 321.39029 |
| DURA CORP | BR34207 |
| DuraGo | BR34207 |
| MAGMA PRODUCTS | PSR603024 |
| MIGHTY DISTRIBUTING SYSTEM | 34207 |
| NAPA BRAKES | SDK6182 |
| NEOTEK | 106487GF |
| NEWTEK AUTOMOTIVE | 34207 |
| Newtek Automotive USA | 34207 |
| PAGID | 355107051 |
| PAGID Racing | 355107051 |
| PILENGA | V264 |
| POWERSTOP | EBR642EVC |
| PROMAX | 14-34207 |
| PRONTO | BR34207 |
| QUALIS | 34207 |
| QUALITEE INTERNATIONAL | 64-21-290 |
| QUINTON HAZELL | BDC5226 |
| TRUSTAR | 421290, R21290 |
| TRW | 4238 |
| TopNotch | TN980046GEO |
| UAP | 34207 |
| VAICO | V9580004 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51615 |
| VOLVO | 272403, 2724030, 2724037, 31262706, 312627060 |
| WABCO | PS126191 |
| WABCO - Archived | PS126191 |
| WAGNER | BD126191, BD126191E |
| WAGNER BRAKE | BD126191, BD180001 |
| WINHERE | 6620045 |
| WORLDPAC | 1407-78492, 1427-731830 |
| Wagner Brake | BD126191E |
RAYBESTOS 980046 Fits Vehicles
- Volvo XC70 (2003-2007)
- Volvo V70 (2001-2007)
- Volvo S80 (1999-2006)
- Volvo S60 (2001-2009)
