(888) 312-8812 Login SignupRAYBESTOS 780514 Raybestos Specialty - Truck Brake Rotor
$17899
Limited availability at this price!
In Stock
Get it by Thursday, Aug 13
RAYBESTOS 780514 Part Description
Manufacturer
Product Description

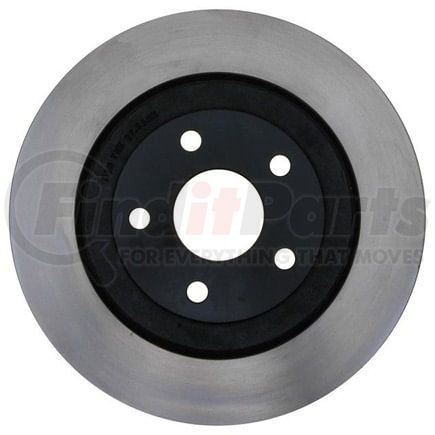

Raybestos Specialty - Truck Brake Rotor
Application Summary
2010-2006 Jeep Grand Cherokee Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780514 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.835 IN |
| Center Hole Diameter | 72 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 1.096 IN |
| Discard Thickness | 27.85 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 13.78 IN |
| Outside Diameter | 350 MM |
| Overall Height | 2.685 IN |
| Overall Height | 68.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352607749 |
RAYBESTOS 780514 Cross References
| Brand | Part Number |
|---|---|
| BRC288RM, 829352607749 | |
| ADVANCE AUTO PARTS | YH145736, YH145736C, YH145736P |
| AUTOZONE | 43148, 43148DG |
| BENDIX | PRT5736 |
| BOSCH | 16011501 |
| BRAKEBEST | 16011501, 780514, 780514PER, 780514RGS |
| BREMBO | 09.N213.11 |
| CENTRIC | 120.58004, 121.58004, 125.58004, 126.58004CSL, 126.58004CSR, 126.58004SL, 126.58004SR, 127.58004CL, 127.58004CR, 127.58004L, 127.58004R, 128.58004CL, 128.58004CR, 128.58004L, 128.58004R |
| CHRYSLER | 5290731AA, 5290731AB |
| Centric Parts | 120.58004, 121.58004, 125.58004, 126.58004CSL, 126.58004CSR, 126.58004SL, 126.58004SR, 127.58004CL, 127.58004CR, 127.58004L, 127.58004R, 128.58004CL, 128.58004CR, 128.58004L, 128.58004R |
| DURA CORP | BR53039, BR900976 |
| DuraGo | 900976, BR900976 |
| Dynamic Friction Company | 604-42003 |
| NEWTEK AUTOMOTIVE | 53039 |
| Newtek Automotive USA | 53039 |
| PROMAX | 14-53039 |
| Qualis | 43148 |
| TRW | 4979 |
| UAP | 53039 |
| WAGNER | BD126419, BD126419E |
| WAGNER BRAKE | BD126419, BD126419E, BD180042 |
| WINHERE | 6620697 |
RAYBESTOS 780514 Fits Vehicles
- Jeep Grand Cherokee (2006-2010)
