RAYBESTOS 96421 Part Description
Manufacturer
Product Description

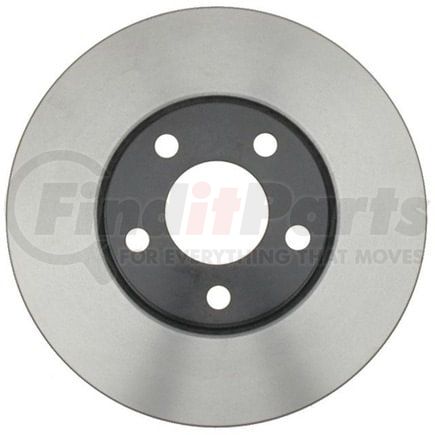

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-1999 Volkswagen Passat Front, 2001-1995 Audi A6 Quattro Front, 1999-1996 Audi A4 Quattro Front, 1999-1996 Audi A4 Front, 2001-1995 Audi A6 Front, 1994-1992 Audi 100 Front, 1994-1992 Audi 100 Quattro Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96421 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.602 IN |
| Mounting Bolt Hole Diameter | 15.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.977 IN |
| Nominal Thickness | 24.8 MM |
| Outside Diameter | 11.325 IN |
| Outside Diameter | 287.65 MM |
| Overall Height | 1.82 IN |
| Overall Height | 46.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999654854 |
RAYBESTOS 96421 Cross References
| Brand | Part Number |
|---|---|
| 030999654854, 120.33039 | |
| ADVANCE AUTO PARTS | 145000, N1000226914ZIC, YH145000, YH145000C, YH145000P |
| ALTROM IMPORTS | 4A0615301D |
| AMERICAN REMANUFACTURED | 789-96032, 89-96032, 89-96041 |
| API | 1407-78997 |
| ATE BRAKE PRODUCTS | 425105, 425171, SP25105, SP25171 |
| AUDI | 4A0615301D |
| AUTOPART INTERNATIONAL | 78997 |
| AUTOSPECIALTY | EBR430, EBR430E |
| AUTOXTRA | 125433, 8096421, AX34055 |
| AUTOZONE | 34055DG, DL34055 |
| AutoZone | 34055 |
| BECK/ARNLEY | 083-2579, 083-2804 |
| BENDIX | 145000 |
| BRAKE HEADQUARTERS | BR03074 |
| BRAKEBEST | 14010012, 81-125433, 96421, 96421FZN, 96421R, 96421RGS, BD125433 |
| BREMBO | 08.8408.11, 09.5745.10, 25391 |
| Brembo | 09.5745.21, 09.5745.2X |
| CALIFORNIA DRUM & ROTOR | 125433 |
| CENTRIC | 121.33039, 125.33039, 125.33039CRY, 126.33039CSL, 126.33039CSR, 126.33039SL, 126.33039SR, 127.33039CL, 127.33039CR, 127.33039L, 127.33039R, 128.33039CL, 128.33039CR, 128.33039L, 128.33039R, 227.33039L, 227.33039R, 320.33039, 320.33039C |
| CENTURY | 9894 |
| CONTINENTAL-CONTITECH | CW25105 |
| Casting Numbers | 325405 |
| Centric Parts | 121.33039, 125.33039, 125.33039CRY, 126.33039CSL, 126.33039CSR, 126.33039SL, 126.33039SR, 127.33039CL, 127.33039CR, 127.33039L, 127.33039R, 128.33039CL, 128.33039CR, 128.33039L, 128.33039R, 227.33039L, 227.33039R, 320.33039, 320.33039C |
| DELPHI | RB312 |
| DURA CORP | BR34055 |
| DuraGo | BR34055, BR34273 |
| EIS BRAKES | D17786 |
| EUROROTOR | AU251 |
| Eurorotor | AU-251 |
| GREN | 412102 |
| GUARDIAN | 52-125433 |
| INTERBRAKES | AD371V |
| MAGMA PRODUCTS | PSR583024 |
| MIDAS | BR2059 |
| MIGHTY DISTRIBUTING SYSTEM | 34055 |
| MONROE BRAKES | BD125433 |
| N/A | 120.33077 |
| NAPA BRAKES | SDK6091, TSR777 |
| NEOTEK | 106007GF |
| NEWTEK AUTOMOTIVE | 34055 |
| Newtek Automotive USA | 34055 |
| PAGID | 355122412, 355122472 |
| PAGID Racing | 355122412, 355122472 |
| PEP BOYS | 34055G |
| POWERSTOP | EBR430EVC |
| PROMAX | 14-34055 |
| PRONTO | BR34055 |
| QUALIS | 34055 |
| QUALITEE INTERNATIONAL | 64-11-200 |
| QUALITY BRAND | 34055, Q183, Q226 |
| QUINTON HAZELL | BDC3825 |
| Qualis | 34273 |
| STANDARD ROTORS AND DRUMS | 34055, GP34055 |
| THE UNIVERSAL GROUP | 117113 |
| TRUSTAR | 411200, R11200 |
| TRW | 2652, DF4336S |
| UAP | 34055 |
| Universal | 117113 |
| VAICO | V1080049 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50852 |
| VOLKSWAGEN | 4A0615301C, 4A0615301E, 8E0615301Q |
| WABCO | PS125433 |
| WABCO - Archived | PS125433 |
| WAGNER | BD125433 |
| WAGNER BRAKE | BD125433 |
| WINHERE | 662088, YH2088 |
| WORLDPAC | 1407-78997 |
RAYBESTOS 96421 Fits Vehicles
- Volkswagen Passat (1998-2005)
- Audi A4 (1996-2008)
- Audi A4 Quattro (1996-2004)
- Audi A6 Quattro (1995-2001)
- Audi A6 (1995-2001)
- Audi 100 (1992-1994)
- Audi 100 Quattro (1992-1994)
