RAYBESTOS 980084 Part Description
Manufacturer
Product Description

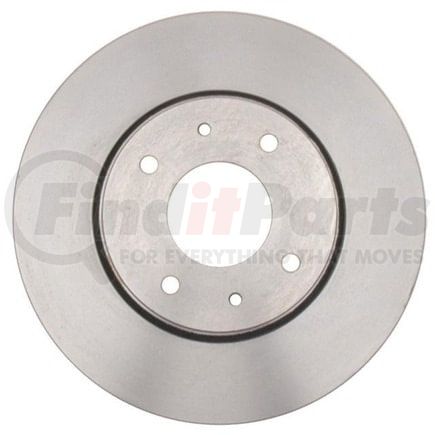

Raybestos Specialty - Truck Brake Rotor
Application Summary
2004-1999 Volvo S40 Front, 2004-1999 Volvo V40 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980084 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.846 IN |
| Discard Thickness | 21.5 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.487 IN |
| Mounting Bolt Hole Diameter | 12.35 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 11.063 IN |
| Outside Diameter | 281 MM |
| Overall Height | 1.791 IN |
| Overall Height | 45.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352200100 |
RAYBESTOS 980084 Cross References
| Brand | Part Number |
|---|---|
| 829352200100, 120.39027 | |
| ADVANCE AUTO PARTS | 832816, YH145440, YH145440C, YH145440P |
| ATE BRAKE PRODUCTS | 424159, SP24159 |
| AUTOSPECIALTY | EBR644, EBR644E |
| AUTOXTRA | AX34210 |
| AUTOZONE | 34210, 34210DG, 34210DL |
| BECK/ARNLEY | 083-2815 |
| BENDIX | 145440 |
| BRAKEBEST | 52011352, 81-126176, 980084, 980084FZN, 980084R, 980084RGS, BD126176 |
| BREMBO | 09.7720.10, 09.7720.11, 25517 |
| Brembo | 09.7720.75 |
| CENTRIC | 120.39027, 121.39027, 125.39027, 126.39027CSL, 126.39027CSR, 126.39027SL, 126.39027SR, 127.39027CL, 127.39027CR, 127.39027L, 127.39027R, 128.39027CL, 128.39027CR, 128.39027L, 128.39027R, 320.39027H |
| Casting Numbers | 325975 |
| Centric Parts | 120.39027, 121.39027, 125.39027, 126.39027CSL, 126.39027CSR, 126.39027SL, 126.39027SR, 127.39027CL, 127.39027CR, 127.39027L, 127.39027R, 128.39027CL, 128.39027CR, 128.39027L, 128.39027R, 320.39027H |
| DURA CORP | BR34210 |
| DuraGo | BR34210 |
| MAGMA PRODUCTS | PSR603027 |
| MIGHTY DISTRIBUTING SYSTEM | 34210 |
| NAPA BRAKES | SDK6106, TSR886 |
| NEWTEK AUTOMOTIVE | 34210 |
| Newtek Automotive USA | 34210 |
| PAGID | 355112171 |
| PAGID Racing | 355112171 |
| PILENGA | V262 |
| POWERSTOP | EBR644EVC |
| PROMAX | 14-34210 |
| PRONTO | BR34210 |
| QUALIS | 34210 |
| QUINTON HAZELL | BDC4572 |
| TRUSTAR | 421240 |
| TRW | DF4054S |
| UAP | 34210 |
| VAICO | V9580007 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51616 |
| VOLVO | 30818027, 308180270, 308180272 |
| WABCO | PS126176 |
| WABCO - Archived | PS126176 |
| WAGNER | BD126176, BD126176E |
| WAGNER BRAKE | BD126176 |
| WINHERE | 442831 |
| WORLDPAC | 1407-78655 |
RAYBESTOS 980084 Fits Vehicles
- Volvo V40 (1999-2004)
- Volvo S40 (1999-2004)
