(888) 312-8812 Login SignupRAYBESTOS 980277 Raybestos Specialty - Street Performance Brake Rotor
$14299
Limited availability at this price!
In Stock
Get as soon as Thursday, Sep 24
RAYBESTOS 980277 Part Description
Manufacturer
Product Description

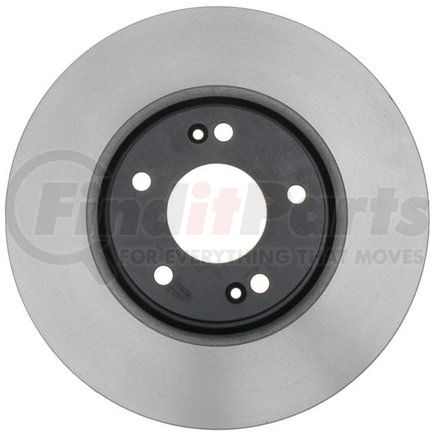

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2011-2006 Hyundai Azera Front, 2009-2004 Kia Amanti Front, 2005-2003 Hyundai XG350 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980277 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.72 IN |
| Center Hole Diameter | 69.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.93 IN |
| Outside Diameter | 303 MM |
| Overall Height | 1.85 IN |
| Overall Height | 47 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352375655 |
RAYBESTOS 980277 Cross References
| Brand | Part Number |
|---|---|
| 901295MM, 829352375655 | |
| ADVANCE AUTO PARTS | YH145674, YH145674C, YH145674P |
| ADVICS | R6F284U |
| AUTOPARTSOURCE | 482210 |
| AUTOXTRA | AX31362 |
| AUTOZONE | 44300, 44300DG |
| BENDIX | PRT5674 |
| BOSCH | 28010824 |
| BRAKEBEST | 28010824, 980277, 980277FZN, 980277R, 980277RGS |
| BREMBO | 25914 |
| CENTRIC | 120.51018, 120.51018CRY, 121.51018, 126.51018CSL, 126.51018CSR, 126.51018SL, 126.51018SR, 127.51018L, 127.51018R, 128.51018CL, 128.51018CR, 128.51018L, 128.51018R, 320.51018, 320.51018F |
| Casting Numbers | 211664-C, 326276 |
| Centric Parts | 120.51018, 120.51018CRY, 121.51018, 126.51018CSL, 126.51018CSR, 126.51018SL, 126.51018SR, 127.51018L, 127.51018R, 128.51018CL, 128.51018CR, 128.51018L, 128.51018R, 320.51018, 320.51018F |
| DURA CORP | BR31362 |
| DuraGo | BR31362 |
| Hyundai | 5171239900, 5171239910, 517123L000, 517123L010 |
| KIA | 517123F000, 517123F100 |
| MAGMA PRODUCTS | PSR283018 |
| NEOTEK | 106945GF |
| NEWTEK AUTOMOTIVE | 31362 |
| Newtek Automotive USA | 31362 |
| Omnicraft | QBRR584 |
| PROMAX | 14-31362 |
| PRONTO | BR31362 |
| QUALIS | 44300 |
| TopNotch | TN980277GEO |
| UAP | 31362 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51759 |
| WABCO | PS126172 |
| WABCO - Archived | PS126172 |
| WAGNER | BD126172, BD126172E |
| WAGNER BRAKE | BD126172 |
| WINHERE | 6620561 |
| WORLDPAC | 1407-77188 |
| Wagner Brake | BD126172E |
RAYBESTOS 980277 Fits Vehicles
- Hyundai Azera (2006-2011)
- Kia Amanti (2004-2009)
- Hyundai XG350 (2003-2005)
