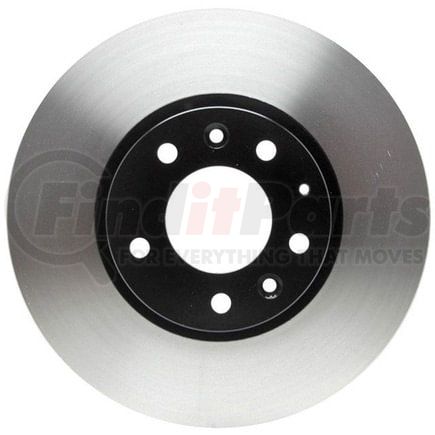

(888) 312-8812 Login SignupRAYBESTOS 680404 Raybestos Specialty - Street Performance Brake Rotor
MSRP: $131.94
$11699
Save $14.95
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 18
RAYBESTOS 680404 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2012-2006 Ford Fusion Front, 2013-2006 Mazda 6 Front, 2012-2007 Lincoln MKZ Front, 2011-2006 Mercury Milan Front, 2006 Lincoln Zephyr Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680404 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.839 IN |
| Center Hole Diameter | 72.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.979 IN |
| Nominal Thickness | 24.85 MM |
| Outside Diameter | 11.77 IN |
| Outside Diameter | 298.95 MM |
| Overall Height | 1.908 IN |
| Overall Height | 48.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352403631 |
RAYBESTOS 680404 Cross References
| Brand | Part Number |
|---|---|
| 908957MM, 829352403631 | |
| ADVANCE AUTO PARTS | YH145668, YH145668C, YH145668P |
| AUTOPARTSOURCE | 592745 |
| AUTOZONE | 42151, 42151DG, 42151DL |
| BENDIX | PRT5668 |
| BOSCH | 20011441, 20011482, 20011506 |
| BRAKEBEST | 20011441, 20011482, 20011506, 680404, 680404FZN, 680404R, 680404RGS |
| BREMBO | 09.B543.10 |
| Brembo | 09.B543.11 |
| CENTRIC | 120.61088, 120.61088CRY, 121.61088, 126.61088CSL, 126.61088CSR, 126.61088SL, 126.61088SR, 127.61088CL, 127.61088CR, 127.61088L, 127.61088R, 128.61088CL, 128.61088CR, 128.61088L, 128.61088R, 227.61088L, 227.61088R, 320.61088, 320.61088F, 321.61088 |
| Casting Numbers | 211766-C, 326263 |
| Centric Parts | 120.61088, 120.61088CRY, 121.61088, 126.61088CSL, 126.61088CSR, 126.61088SL, 126.61088SR, 127.61088CL, 127.61088CR, 127.61088L, 127.61088R, 128.61088CL, 128.61088CR, 128.61088L, 128.61088R, 227.61088L, 227.61088R, 320.61088, 320.61088F, 321.61088 |
| DURA CORP | BR54142, BR5414202 |
| DuraGo | BR54142, BR5414202, BR54142-02 |
| Dynamic Friction Company | 604-54059 |
| FORD | 6E5Z1125AA, 9E5Z1125A, 9E5Z1125B, 9E5Z1125C |
| MAGMA PRODUCTS | PSR203078 |
| MAZDA | GP7Y3325XA, GP7Y3325XB |
| MONROE BRAKES | BD126344 |
| MOTORCRAFT | BRR144 |
| Motorcraft | NBRR11 |
| NEOTEK | 1071067GF |
| NEWTEK AUTOMOTIVE | 54142 |
| Newtek Automotive USA | 54142 |
| POWERSTOP | JBR1154EVC |
| PROMAX | 14-54142, 20-54142 |
| PRONTO | BR54142 |
| QUALIS | 42151 |
| TRUSTAR | 492745 |
| TopNotch | TN680404GEO |
| UAP | 2054142, 54142 |
| Ultra Brake | 54500 |
| WABCO | PS126344 |
| WABCO - Archived | PS126344 |
| WAGNER | BD126344, BD126344E |
| WAGNER BRAKE | BD126344, BD126344E |
| WINHERE | 6620629 |
| WORLDPAC | 1407-77130, 1427-731811 |
RAYBESTOS 680404 Fits Vehicles
- Lincoln MKZ (2007-2012)
- Mazda 6 (2006-2013)
- Lincoln Zephyr (2006)
- Mercury Milan (2006-2011)
- Ford Fusion (2006-2012)
