(888) 312-8812 Login SignupRAYBESTOS 680107 Raybestos Specialty - Street Performance Brake Rotor
$10349
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Aug 4
RAYBESTOS 680107 Part Description
Manufacturer
Product Description

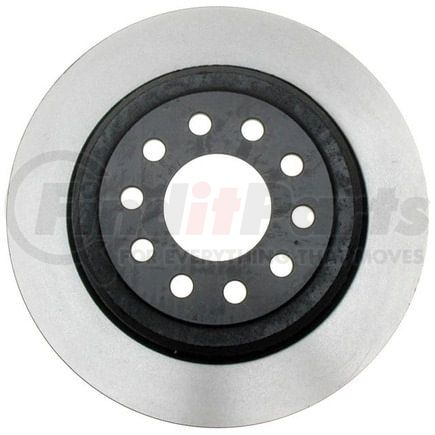

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2011-2003 Lincoln Town Car Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680107 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.782 IN |
| Center Hole Diameter | 70.65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 0.75 IN |
| Nominal Thickness | 19.05 MM |
| Outside Diameter | 11.615 IN |
| Outside Diameter | 295 MM |
| Overall Height | 2.42 IN |
| Overall Height | 61.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352027219 |
RAYBESTOS 680107 Cross References
| Brand | Part Number |
|---|---|
| 78053731, 829352027219 | |
| ADVANCE AUTO PARTS | 145379, YH145379, YH145379C, YH145379P |
| AUTOSPECIALTY | AR8166 |
| AUTOXTRA | AX54101 |
| AUTOZONE | 54101, 54101DG |
| BENDIX | 145379 |
| BOSCH | 20010417 |
| BRAKEBEST | 20010417, 680107, 680107R, 680107RGS, BD126008 |
| BREMBO | 27298 |
| Brembo | 09.9523.81 |
| CENTRIC | 120.61075, 121.61075, 126.61075CSL, 126.61075CSR, 126.61075SL, 126.61075SR, 127.61075L, 127.61075R, 320.61075 |
| Casting Numbers | 211462-C, 325983, 3W132C026A |
| Centric Parts | 120.61075, 121.61075, 126.61075CSL, 126.61075CSR, 126.61075SL, 126.61075SR, 127.61075L, 127.61075R, 320.61075 |
| DURA CORP | BR54101, BR5410102 |
| DuraGo | BR54101, BR5410102 |
| FORD | 3W1Z2C026AA |
| MAGMA PRODUCTS | PSR203070 |
| MIGHTY DISTRIBUTING SYSTEM | 54101 |
| MOTORCRAFT | BRR114 |
| Motorcraft | NBRR38 |
| NEOTEK | 1071051GF |
| NEWTEK AUTOMOTIVE | 54101 |
| Newtek Automotive USA | 54101 |
| PROMAX | 14-54101 |
| PRONTO | BR54101 |
| QUALIS | 54101 |
| STANDARD ROTORS AND DRUMS | 54101 |
| UAP | 54101 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51465 |
| WABCO | PS126008 |
| WABCO - Archived | PS126008 |
| WAGNER | BD126008 |
| WAGNER BRAKE | BD126008 |
| WINHERE | 662986 |
| WORLDPAC | 1407-25841 |
RAYBESTOS 680107 Fits Vehicles
- Lincoln Town Car (2003-2011)
RAYBESTOS 680107 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 680107 Questions & Answers
No questions yet
Be the first to ask a question about this product!
