RAYBESTOS 980080 Part Description
Manufacturer
Product Description

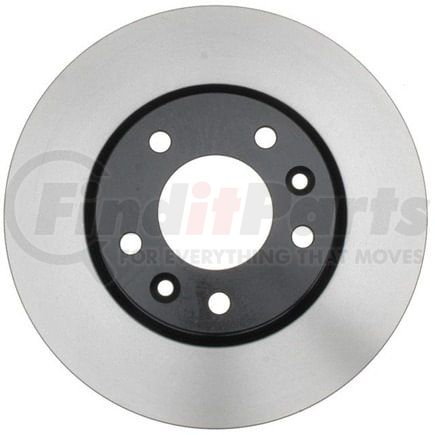

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-2002 Kia Sedona Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980080 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.837 IN |
| Center Hole Diameter | 72.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 10.865 IN |
| Outside Diameter | 275.95 MM |
| Overall Height | 1.905 IN |
| Overall Height | 48.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730903897 |
RAYBESTOS 980080 Cross References
| Brand | Part Number |
|---|---|
| 77416757, 747730903897 | |
| ADVANCE AUTO PARTS | 145524, YH145524, YH145524C, YH145524P |
| AUTOPARTSOURCE | 483190 |
| AUTOSPECIALTY | JBR953 |
| AUTOZONE | 31334, 31334DG, 31334DL |
| BENDIX | 145524 |
| BRAKEBEST | 32010861, 81-126159, 980080, 980080FZN, 980080R, 980080RGS, BD126159 |
| BREMBO | 09.B450.10, 25898 |
| CENTRIC | 120.50006, 121.50006, 127.50006L, 127.50006R |
| Casting Numbers | 211438-C, 326175 |
| Centric Parts | 120.50006, 121.50006, 127.50006L, 127.50006R |
| DURA CORP | BR31334 |
| DuraGo | BR31334 |
| KIA | 0K52Y33251, 0K52Y33251A |
| MIGHTY DISTRIBUTING SYSTEM | 31334 |
| NEOTEK | 106935GF |
| NEWTEK AUTOMOTIVE | 31334 |
| Newtek Automotive USA | 31334 |
| PROMAX | 14-31334 |
| PRONTO | BR31334 |
| QUALITY BRAND | Q101 |
| Qualis | 31334 |
| UAP | 31334 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51592 |
| WAGNER | BD126250, BD126159E |
| WAGNER BRAKE | BD126159 |
| WINHERE | 4420280 |
| Wagner Brake | BD126159E |
RAYBESTOS 980080 Fits Vehicles
- Kia Sedona (2002-2004)
RAYBESTOS 980080 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980080 Questions & Answers
No questions yet
Be the first to ask a question about this product!
