(888) 312-8812 Login SignupRAYBESTOS 96773 Raybestos Specialty - Street Performance Brake Rotor
$78.64
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96773 Part Description
Manufacturer
Product Description

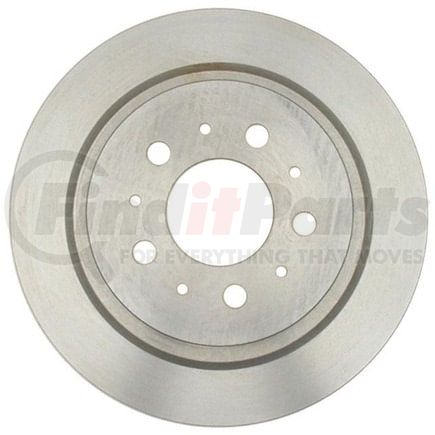

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1998-1997 Volvo S90 Rear, 1998 Volvo V90 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96773 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.394 IN |
| Discard Thickness | 10 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 10.906 IN |
| Outside Diameter | 277 MM |
| Overall Height | 2.795 IN |
| Overall Height | 71 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352038376 |
RAYBESTOS 96773 Cross References
| Brand | Part Number |
|---|---|
| 829352038376, 120.39022 | |
| ADVANCE AUTO PARTS | YH145407, YH145407C |
| ATE BRAKE PRODUCTS | 412150 |
| AUTOZONE | 34141, 34141DG |
| BENDIX | 145407 |
| BOSCH | 52011363 |
| BRAKEBEST | 52011363, 96773, 96773R, 96773RGS |
| BREMBO | 25815 |
| Brembo | 08.9441.11 |
| CENTRIC | 120.39022, 120.39022CRY, 121.39022, 126.39022CSL, 126.39022CSR, 126.39022SL, 126.39022SR, 127.39022L, 127.39022R |
| Casting Numbers | 325902 |
| Centric Parts | 120.39022, 120.39022CRY, 121.39022, 126.39022CSL, 126.39022CSR, 126.39022SL, 126.39022SR, 127.39022L, 127.39022R |
| DURA CORP | BR34141 |
| DuraGo | BR34141 |
| MIGHTY DISTRIBUTING SYSTEM | 34141 |
| NEWTEK AUTOMOTIVE | 34141 |
| Newtek Automotive USA | 34141 |
| PILENGA | 5262 |
| PRONTO | BR34141 |
| QUALIS | 34141 |
| UAP | 34141 |
| Ultra Brake | VO-931 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51612 |
| VOLVO | 272301, 2723010, 2723013 |
| WORLDPAC | 1427-719990 |
RAYBESTOS 96773 Fits Vehicles
- Volvo V90 (1997-1998)
- Volvo S90 (1997-1998)
