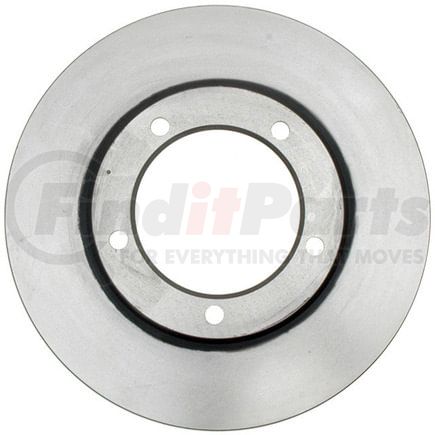

Raybestos 96797 - Raybestos Specialty - Truck Brake Rotor
$10799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
RAYBESTOS part description
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2007-1998 Toyota Land Cruiser Front, 2007-1998 Lexus LX470 Front
Product Attributes
ABS Tone Ring Included | No |
Center Hole Diameter | 4.53 IN |
Center Hole Diameter | 115.05 MM |
Conventional Or Drum-In-Hat Type Rotor | Conventional |
Discard Thickness | 1.181 IN |
Discard Thickness | 30 MM |
Harmonize Code | 8708.30.5030 |
Mounting Bolt Hole Circle Diameter | 5.669 IN |
Mounting Bolt Hole Circle Diameter | 144 MM |
Mounting Bolt Hole Diameter | 5.669 IN |
Mounting Bolt Hole Diameter | 144 MM |
Mounting Bolt Hole Quantity | 5 |
Nominal Thickness | 1.26 IN |
Nominal Thickness | 32 MM |
Outside Diameter | 12.32 IN |
Outside Diameter | 312.95 MM |
Overall Height | 2.745 IN |
Overall Height | 69.7 MM |
Salability Restrictions | No |
Solid Or Vented Type Rotor | Vented |
Stud/Lug Hole Quantity | 5 |
UNSPSC Code | 25171715 |
Additional Information
Country of Origin (Primary) | CN |
UPC | 00747730912240 |
Part Interchanges
- Toyota 4351260130
- Toyota 4351260170
- Toyota 4351260171
- Beck/Arnley 083-2794
- Brembo 09.9087.85
- Brembo 09.9143.10
- Brembo 09.9143.11
- Brembo 25674
- Mighty Distributing System 31265
- Wagner Brake BD125685
- Wagner Brake BD126406
- Bendix 145222
- Quality Brand 31265
- Quality Brand Q027
- VIPAR - Vehicle Indusrty Parts & Manufacturing X51485
- PowerStop JBR735EVC
- BrakeBest 96797
- BrakeBest 96797R
- BrakeBest 96797RGS
- BrakeBest BD125685
- Centric Parts 120.44086
- Centric Parts 120.44086CRY
- Centric Parts 121.44086
- Centric Parts 126.44086CSL
- Centric Parts 126.44086CSR
- Centric Parts 126.44086SL
- Centric Parts 126.44086SR
- Centric Parts 127.44086CL
- Centric Parts 127.44086CR
- Centric Parts 127.44086L
- Centric Parts 127.44086R
- Centric Parts 128.44086CL
- Centric Parts 128.44086CR
- Centric Parts 128.44086L
- Centric Parts 128.44086R
- Centric Parts 320.44086
- WABCO - Archived PS125685
- AutoZone 31265
- AutoZone 31265DG
- Advance Auto Parts 145222
- Advance Auto Parts YH145222
- Advance Auto Parts YH145222C
- American Remanufactured 89-22105
- Autoxtra 125685
- Autoxtra AX31265
- Casting Numbers 211234-C
- Casting Numbers 325492
- Dura Corp BR31265
- Continental-ContiTech CW32705
- Standard Rotors and Drums 31265
- Qualis 31265
- Winhere 662450
- Newtek Automotive USA 31265
- Pep Boys 31265G
- TRW DF7828
- Promax 14-31265
- UAP 31265
- NAPA BRAKES TSR788
- Omnicraft QBRR547
- DuraGo BR31265
RAYBESTOS 96797 Cross Reference
We have 59 alternatives for the 96797 by RAYBESTOS:
- 77416783
- 747730912240
- NEOTEK 106376GF
- BENDIX 145222
- TOYOTA 4351260130
- TOYOTA 4351260170
- TOYOTA 4351260171
- WABCO PS125685
- ADVANCE AUTO PARTS 145222
- ADVANCE AUTO PARTS YH145222
- ADVANCE AUTO PARTS YH145222C
- AMERICAN REMANUFACTURED 89-22105
- AUTOXTRA 125685
- AUTOXTRA AX31265
- AUTOZONE 31265
- AUTOZONE 31265DG
- BECK/ARNLEY 083-2794
- BRAKEBEST 96797
- BRAKEBEST 96797R
- BRAKEBEST 96797RGS
- BRAKEBEST BD125685
- BREMBO 09.9087.85
- BREMBO 09.9143.10
- BREMBO 09.9143.11
- BREMBO 25674
- CENTRIC 120.44086
- CENTRIC 120.44086CRY
- CENTRIC 121.44086
- CENTRIC 126.44086CSL
- CENTRIC 126.44086CSR
- CENTRIC 126.44086SL
- CENTRIC 126.44086SR
- CENTRIC 127.44086CL
- CENTRIC 127.44086CR
- CENTRIC 127.44086L
- CENTRIC 127.44086R
- CENTRIC 128.44086CL
- CENTRIC 128.44086CR
- CENTRIC 128.44086L
- CENTRIC 128.44086R
- CENTRIC 320.44086
- CONTINENTAL-CONTITECH CW32705
- DURA CORP BR31265
- MIGHTY DISTRIBUTING SYSTEM 31265
- NAPA BRAKES TSR788
- NEWTEK AUTOMOTIVE 31265
- PEP BOYS 31265G
- POWERSTOP JBR735EVC
- PROMAX 14-31265
- QUALIS 31265
- QUALITY BRAND 31265
- QUALITY BRAND Q027
- STANDARD ROTORS AND DRUMS 31265
- TRW DF7828
- UAP 31265
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X51485
- WAGNER BRAKE BD125685
- WAGNER BRAKE BD126406
- WINHERE 662450
Fits Vehicles
- Toyota Land Cruiser (1998-2007)
- Lexus LX470 (1998-2007)
