(888) 312-8812 Login SignupRAYBESTOS 66576 Raybestos Specialty - Truck Brake Rotor
$11249
Limited availability at this price!
In Stock
Get it by Wednesday, Sep 9
RAYBESTOS 66576 Part Description
Manufacturer
Product Description

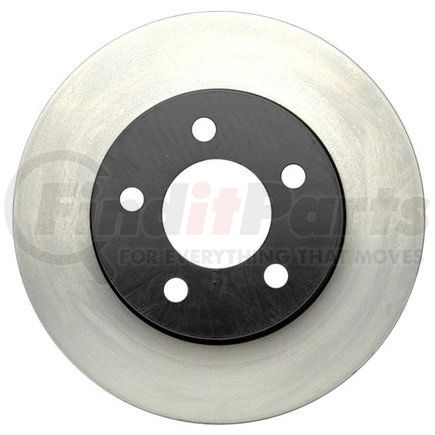

Raybestos Specialty - Truck Brake Rotor
Application Summary
2003-1998 Ford Ranger Front, 2001-1995 Ford Explorer Front, 2001-1997 Mercury Mountaineer Front, 2002-1998 Mazda B3000 Front, 2004-1998 Mazda B4000 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 66576 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.965 IN |
| Discard Thickness | 24.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.625 IN |
| Mounting Bolt Hole Diameter | 15.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 11.26 IN |
| Outside Diameter | 286 MM |
| Overall Height | 2.59 IN |
| Overall Height | 65.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999966506 |
RAYBESTOS 66576 Cross References
| Brand | Part Number |
|---|---|
| 29546212, 30999966506 | |
| ADVANCE AUTO PARTS | 145075, YH145075, YH145075C, YH145075P |
| AMERICAN REMANUFACTURED | 789-42054, 89-42082, 89-42054 |
| AUTOPART INTERNATIONAL | 25480 |
| AUTOPARTSOURCE | 592210 |
| AUTOSPECIALTY | AR8554, AR8554E |
| AUTOXTRA | 125494, AX54035 |
| AUTOZONE | 54035, 54035B, 54035DG, DL54035 |
| Autoxtra | AX54035P |
| BECK/ARNLEY | 080-2762, 083-2762 |
| BENDIX | 145075, 145188 |
| BOSCH | 20010306, RBR54035 |
| BRAKE HEADQUARTERS | BR54675 |
| BRAKEBEST | 20010306, 66576RGS, 66576, 66576FZN, 66576R, 81-125494, BD125494 |
| BREMBO | 09.7652.10, 27010 |
| BrakeBest | 56579RGS |
| Brembo | 09.7652.11 |
| Bridgestone | 7002441 |
| CALIFORNIA DRUM & ROTOR | 125494 |
| CENTRIC | 120.65054, 120.65054CRY, 121.65054, 121.65054CRY, 125.65054, 126.65054CSL, 126.65054CSR, 126.65054SL, 126.65054SR, 127.65054CL, 127.65054CR, 127.65054L, 127.65054R, 128.65054CL, 128.65054CR, 128.65054L, 128.65054R, 227.65054L, 227.65054R, 320.65054 |
| CONTINENTAL-CONTITECH | CW26712 |
| Casting Numbers | 210705-C, 2539506, 325212 |
| Centric Parts | 120.65054, 120.65054CRY, 121.65054, 121.65054CRY, 125.65054, 126.65054CSL, 126.65054CSR, 126.65054SL, 126.65054SR, 127.65054CL, 127.65054CR, 127.65054L, 127.65054R, 128.65054CL, 128.65054CR, 128.65054L, 128.65054R, 227.65054L, 227.65054R, 320.65054 |
| DELPHI | RB445 |
| DURA CORP | BR54035, BR5403502 |
| DuraGo | BR54035, BR5403502 |
| EIS BRAKES | D17813 |
| EUROROTOR | 54145 |
| FORD | F67Z1125BA, F5TZ1125A, XL5Z1125CA |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12570059 |
| GREN | 648302 |
| GUARDIAN | 52-125494 |
| MAGMA PRODUCTS | PSR205165 |
| MAZDA | ZZP233251 |
| MIDAS | BR1993 |
| MIGHTY DISTRIBUTING SYSTEM | 54035 |
| MONROE BRAKES | BD125494 |
| MOTORCRAFT | BRR5 |
| Motorcraft | NBRR7 |
| NEOTEK | 107134GF |
| NEWTEK AUTOMOTIVE | 54035 |
| Newtek Automotive USA | 54035 |
| PARTS MASTER | P125494 |
| POWERSTOP | AR8554EVC |
| PROMAX | 14-54035 |
| PRONTO | BR54035 |
| QUALIS | 54035 |
| QUALITY BRAND | 54035, Q4130 |
| QUINTON HAZELL | BDC4782 |
| STANDARD ROTORS AND DRUMS | 54035 |
| THE UNIVERSAL GROUP | 102169 |
| TopNotch | TN66576GEO |
| UAP | 54035 |
| Universal | 102169 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51013 |
| WABCO | PS125494 |
| WABCO - Archived | PS125494 |
| WAGNER | BD125494, BD125494E |
| WAGNER BRAKE | BD125494, BD125494E |
| WINHERE | 442316, YH2316 |
| WORLDPAC | 1407-25480 |
RAYBESTOS 66576 Fits Vehicles
- Mazda B4000 (1998-2004)
- Mazda B3000 (1998-2002)
- Mercury Mountaineer (1997-2001)
- Ford Ranger (1998-2005)
- Ford Explorer (1995-2001)
