(888) 312-8812 Login SignupRAYBESTOS 980392 Raybestos Specialty - Street Performance Brake Rotor
$65.43
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980392 Part Description
Manufacturer
Product Description

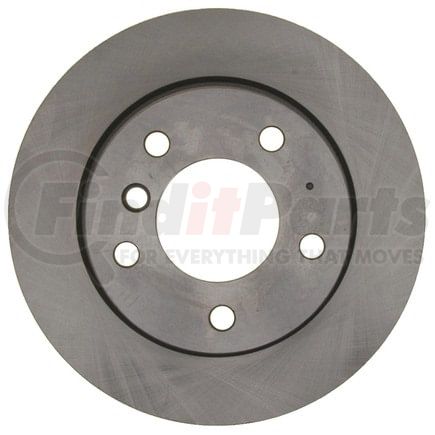

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2005-2003 BMW Z4 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980392 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.575 IN |
| Mounting Bolt Hole Diameter | 14.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 11.024 IN |
| Outside Diameter | 280 MM |
| Overall Height | 2.953 IN |
| Overall Height | 75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352354995 |
RAYBESTOS 980392 Cross References
| Brand | Part Number |
|---|---|
| 829352354995, 120.34068 | |
| ADVANCE AUTO PARTS | YH200897, YH200897C |
| ATE BRAKE PRODUCTS | SP10287, 410287 |
| AUTOXTRA | AX901038 |
| AUTOZONE | 45423, 45423DG |
| BMW | 34216752545, 34216766225 |
| BRAKEBEST | 980392, 980392R, 980392RGS |
| BREMBO | 08.9859.81, 25589 |
| CENTRIC | 120.34068, 121.34068, 125.34068, 125.34068CRY, 126.34068SL, 126.34068SR, 127.34068L, 127.34068R, 128.34068L, 128.34068R |
| Casting Numbers | 211759-C |
| Centric Parts | 120.34068, 121.34068, 125.34068, 125.34068CRY, 126.34068SL, 126.34068SR, 127.34068L, 127.34068R, 128.34068L, 128.34068R |
| DURA CORP | BR34280, BR901038 |
| DuraGo | BR901038 |
| MAGMA PRODUCTS | PSR123063 |
| NAPA BRAKES | SDK6488 |
| NEWTEK AUTOMOTIVE | 34280 |
| Newtek Automotive USA | 34280 |
| PILENGA | 5138 |
| POWERSTOP | EBR669EVC |
| PRONTO | BR901038 |
| Qualis | 45423 |
| TRW | 6106 |
| UAP | 34280 |
| VAICO | V2040022 |
| WAGNER | BD180024 |
| WAGNER BRAKE | BD180024 |
| WORLDPAC | 1427-719547 |
RAYBESTOS 980392 Fits Vehicles
- BMW Z4 (2003-2006)
