RAYBESTOS 780175R Part Description
Manufacturer
Product Description

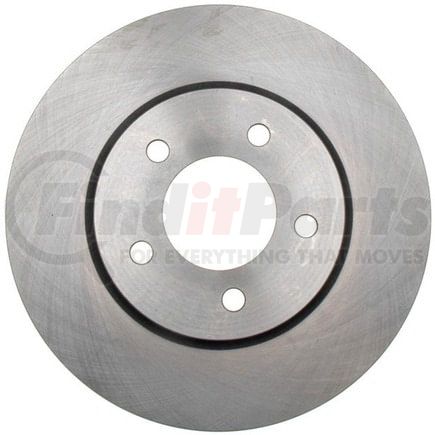

Raybestos R-Line Brake Rotor
Application Summary
2008-2004 Chrysler Pacifica Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 780175R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.23 IN |
| Center Hole Diameter | 82.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.043 IN |
| Discard Thickness | 26.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.604 IN |
| Mounting Bolt Hole Diameter | 15.35 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.52 IN |
| Outside Diameter | 318 MM |
| Overall Height | 1.85 IN |
| Overall Height | 47 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352599044 |
RAYBESTOS 780175R Cross References
| Brand | Part Number |
|---|---|
| BRC165RM, 829352599044 | |
| ADVANCE AUTO PARTS | YH145468, YH145468C, YH145468P |
| AUTOXTRA | AX53019 |
| AUTOZONE | 53019, 53019DG |
| BENDIX | 145468 |
| BOSCH | 16010223 |
| BRAKEBEST | 16010223, 780175, 780175FZN, 780175R, 780175RGS |
| BREMBO | 09.B661.10, 27351 |
| Bridgestone | 7009552 |
| CENTRIC | 120.63058, 121.63058, 126.63058CSL, 126.63058CSR, 126.63058SL, 126.63058SR, 127.63058L, 127.63058R, 128.63058CL, 128.63058CR, 128.63058L, 128.63058R, 227.63058L, 227.63058R, 320.63058, 320.63058F, 321.63058 |
| CHRYSLER | 04721234AA, 04721234AB, 4721234AA, 4721234AB |
| Casting Numbers | 204202696, 211573-DP, 326273 |
| Centric Parts | 120.63058, 121.63058, 126.63058CSL, 126.63058CSR, 126.63058SL, 126.63058SR, 127.63058L, 127.63058R, 128.63058CL, 128.63058CR, 128.63058L, 128.63058R, 227.63058L, 227.63058R, 320.63058, 320.63058F, 321.63058 |
| DURA CORP | BR53019, BR90231 |
| DuraGo | BR53019 |
| MAGMA PRODUCTS | PMR145172 |
| MIGHTY DISTRIBUTING SYSTEM | 53019 |
| NEWTEK AUTOMOTIVE | 53019 |
| Newtek Automotive USA | 53019 |
| Omnicraft | QBRR28 |
| POWERSTOP | AR8758EVC |
| PROMAX | 14-53019 |
| QUALIS | 53019 |
| QUALITY BRAND | Q4160 |
| TRUSTAR | 491350 |
| UAP | 53019 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51532 |
| WABCO | PS126155 |
| WABCO - Archived | PS126155 |
| WAGNER | BD126155, BD126155E |
| WAGNER BRAKE | BD126155 |
| WINHERE | 6620321 |
| WORLDPAC | 1407-77192 |
| Wagner Brake | BD126155E |
RAYBESTOS 780175R Fits Vehicles
- Chrysler Pacifica (2004-2008)
