RAYBESTOS 66448 Part Description
Manufacturer
Product Description

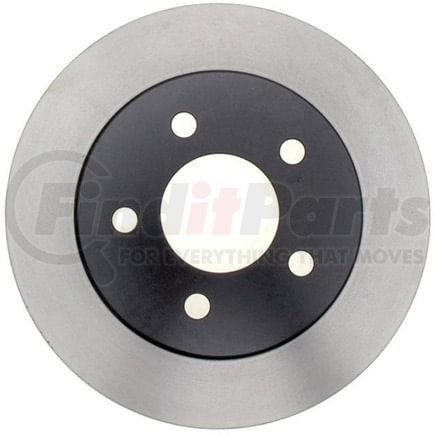

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-1994 Ford Mustang Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 66448 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.79 IN |
| Center Hole Diameter | 70.85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.504 IN |
| Discard Thickness | 12.8 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.55 IN |
| Nominal Thickness | 13.95 MM |
| Outside Diameter | 10.51 IN |
| Outside Diameter | 266.95 MM |
| Overall Height | 1.98 IN |
| Overall Height | 50.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999757616 |
RAYBESTOS 66448 Cross References
| Brand | Part Number |
|---|---|
| 25157264, 30999757616 | |
| ADVANCE AUTO PARTS | 141902, YH141902, YH141902C, YH141902P |
| AMERICAN REMANUFACTURED | 789-34042, 89-34042 |
| AUTOPART INTERNATIONAL | 25443 |
| AUTOSPECIALTY | AR8142, AR8142E |
| AUTOXTRA | 125406, 8066448, AX54017 |
| AUTOZONE | 54017, 54017B, 54017DG, DL54017 |
| BENDIX | 141902 |
| BOSCH | RBR54017 |
| BRAKE HEADQUARTERS | BR54551 |
| BRAKE PRO | 4614017 |
| BRAKEBEST | 66448, 66448FZN, 66448PER, 66448R, 66448RGS, 81-125406, BD125406 |
| BREMBO | 08.8030.85, 27111, 08.8030.80 |
| Bridgestone | 7006770 |
| CALIFORNIA DRUM & ROTOR | 125406 |
| CENTRIC | 120.61042, 120.61042CRY, 121.61042, 125.61042, 125.61042CRY, 126.61042CSL, 126.61042CSR, 126.61042SL, 126.61042SR, 127.61042CL, 127.61042CR, 127.61042L, 127.61042R, 128.61042CL, 128.61042CR, 128.61042L, 128.61042R, 227.61042L, 227.61042R, 228.61042DL, 228.61042DR, 320.61042, 321.61042 |
| CENTURY | 6083 |
| CONTINENTAL-CONTITECH | CW14703 |
| Casting Numbers | 210627-C, 325199, 540171 |
| Centric Parts | 120.61042, 120.61042CRY, 121.61042, 125.61042, 125.61042CRY, 126.61042CSL, 126.61042CSR, 126.61042SL, 126.61042SR, 127.61042CL, 127.61042CR, 127.61042L, 127.61042R, 128.61042CL, 128.61042CR, 128.61042L, 128.61042R, 227.61042L, 227.61042R, 228.61042DL, 228.61042DR, 320.61042, 321.61042 |
| DELPHI | RB384 |
| DURA CORP | BR54017 |
| DuraGo | BR54017 |
| EIS BRAKES | D17681 |
| EUROROTOR | 54111 |
| FORD | F4ZZ2C026A, F8ZZ2C026AA |
| GREN | 646501 |
| GUARDIAN | 52-125406 |
| MAGMA PRODUCTS | PSR203055 |
| MIDAS | BR1926 |
| MIGHTY DISTRIBUTING SYSTEM | 54017 |
| MONROE BRAKES | BD125406 |
| MOTORCRAFT | BRR55 |
| Motorcraft | NBRR102 |
| NEOTEK | 107162GF |
| NEWTEK AUTOMOTIVE | 54017 |
| Newtek Automotive USA | 54017 |
| PARTS MASTER | P125406 |
| POWERSTOP | AR8142EVC |
| PROMAX | 14-54017 |
| PRONTO | BR54017 |
| QUALIS | 54017 |
| QUALITEE INTERNATIONAL | 64-92-050 |
| QUALITY BRAND | 54017, Q4026 |
| STANDARD ROTORS AND DRUMS | 54017 |
| THE UNIVERSAL GROUP | 102265 |
| TRUSTAR | 492050, R92050 |
| TopNotch | TN66448GEO |
| UAP | 54017 |
| Ultra Brake | 54111 |
| Universal | 102265 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50840 |
| WABCO | PS125406 |
| WABCO - Archived | PS125406 |
| WAGNER | BD125406E, BD125406 |
| WAGNER BRAKE | BD125406 |
| WINHERE | 441166, YH1166 |
| WORLDPAC | 1407-25443 |
| Wagner Brake | BD125406E |
RAYBESTOS 66448 Fits Vehicles
- Ford Mustang (1994-2004)
