(888) 312-8812 Login SignupRAYBESTOS 980004R Raybestos R-Line Brake Rotor
$49.28
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980004R Part Description
Manufacturer
Product Description

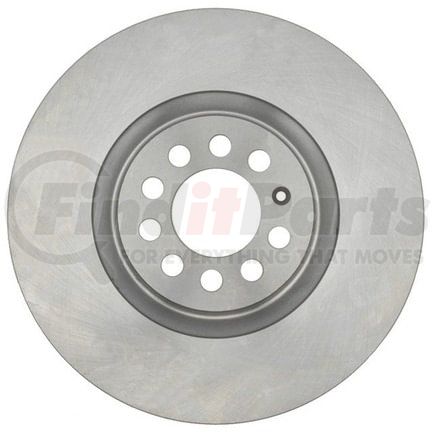

Raybestos R-Line Brake Rotor
Application Summary
2004 Volkswagen Jetta Front, 2003-2002 Volkswagen Golf Front, 2006-2000 Audi TT Quattro Front, 2006-2000 Audi TT Front, 2013-2011 Volkswagen Clasico Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980004R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.559 IN |
| Center Hole Diameter | 65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.609 IN |
| Mounting Bolt Hole Diameter | 15.45 MM |
| Mounting Bolt Hole Quantity | 9 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 12.283 IN |
| Outside Diameter | 312 MM |
| Overall Height | 1.354 IN |
| Overall Height | 34.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 9 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352467176 |
RAYBESTOS 980004R Cross References
| Brand | Part Number |
|---|---|
| ASH12290, 829352467176 | |
| ADVANCE AUTO PARTS | 145387, YH145387, YH145387C |
| AUTOXTRA | AX34193 |
| AUTOZONE | 34193, 34193DG |
| BENDIX | 145387 |
| BRAKEBEST | 53011389, 980004, 980004R, 980004RGS, BD126241 |
| BREMBO | 09.7880.10, 09.7880.11, 25582 |
| Brembo | 09.7880.1S, 09.7880.1X, 09.7880.75 |
| CENTRIC | 120.33062, 121.33062, 125.33062, 125.33062CRY, 126.33062CSL, 126.33062CSR, 126.33062SL, 126.33062SR, 127.33062CL, 127.33062CR, 127.33062L, 127.33062R, 128.33062CL, 128.33062CR, 128.33062L, 128.33062R, 320.33062, 320.33062F |
| Casting Numbers | 325954 |
| Centric Parts | 120.33062, 121.33062, 125.33062, 125.33062CRY, 126.33062CSL, 126.33062CSR, 126.33062SL, 126.33062SR, 127.33062CL, 127.33062CR, 127.33062L, 127.33062R, 128.33062CL, 128.33062CR, 128.33062L, 128.33062R, 320.33062, 320.33062F |
| DURA CORP | BR34193 |
| DuraGo | BR34193 |
| MAGMA PRODUCTS | PMR583048 |
| MIGHTY DISTRIBUTING SYSTEM | 34193 |
| MONROE BRAKES | BD126241 |
| NAPA BRAKES | SDK6151 |
| NEWTEK AUTOMOTIVE | 34193 |
| Newtek Automotive USA | 34193 |
| Omnicraft | QBRR553 |
| PAGID | 355106732 |
| PAGID Racing | 355106732 |
| PILENGA | V866 |
| POWERSTOP | EBR646EVC |
| PROMAX | 14-34193 |
| QUINTON HAZELL | BDC4768 |
| Qualis | 34193 |
| TRW | 4064, DF4064S |
| UAP | 34193 |
| VAICO | V1080071 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51509 |
| VOLKSWAGEN | 8L0615301, 8N0615301A |
| WAGNER | BD126241E, BD180419 |
| WAGNER BRAKE | BD126241, BD126241E |
| WINHERE | 662848 |
| WORLDPAC | 1407-78717 |
RAYBESTOS 980004R Fits Vehicles
- Volkswagen Vento (2018-2019)
- Volkswagen Polo (2017-2018)
- Audi A1 (2015-2018)
- Seat Toledo (2001-2005)
- Seat Leon (2001-2005)
- Audi S3 (2000-2003)
- Volkswagen Clasico (2011-2013)
- Volkswagen Jetta (2004-2005)
- Volkswagen Golf (2002-2006)
- Audi TT Quattro (2000-2007)
- Audi TT (1999-2007)
