(888) 312-8812 Login SignupRAYBESTOS 96026 Raybestos Specialty - Street Performance Brake Rotor
$53.33
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96026 Part Description
Manufacturer
Product Description

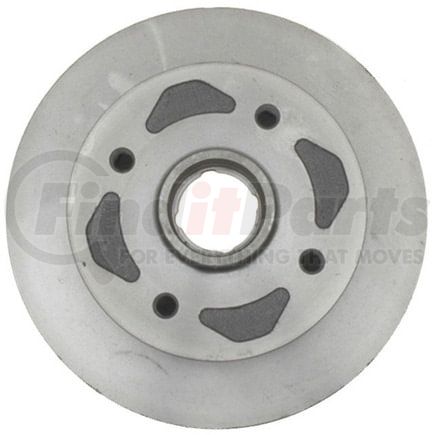

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1985-1984 Mazda RX-7 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96026 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 1.5 IN |
| Center Hole Diameter | 38.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.67 IN |
| Discard Thickness | 17 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 8.94 IN |
| Outside Diameter | 227.1 MM |
| Overall Height | 3.555 IN |
| Overall Height | 90.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999192356 |
RAYBESTOS 96026 Cross References
| Brand | Part Number |
|---|---|
| 180-5012, 30999192356 | |
| ADVANCE AUTO PARTS | 141317, YH141317, YH141317C |
| AMERICAN REMANUFACTURED | 789-14011, 89-14011 |
| AUTOZONE | 3188, 3188DG |
| BECK/ARNLEY | 080-2163, 083-2163 |
| BENDIX | 141317 |
| BRAKE HEADQUARTERS | BR08289 |
| BRAKE PRO | 4619027 |
| BRAKEBEST | 96026, 96026R, 96026RGS, BD60769 |
| BREMBO | 09.5630.10, 25361, 09563010 |
| CALIFORNIA DRUM & ROTOR | 60769 |
| CENTRIC | 120.45011, 121.45011, 126.45011SL, 126.45011SR, 127.45011L, 127.45011R |
| CENTURY | 9027 |
| Casting Numbers | 31888, 325737 |
| Centric Parts | 120.45011, 121.45011, 126.45011SL, 126.45011SR, 127.45011L, 127.45011R |
| DELPHI | RB151 |
| DURA CORP | BR3188 |
| DuraGo | BR3188 |
| EIS BRAKES | D17440 |
| EUROROTOR | MA820 |
| GIRLING | GR668 |
| GREN | 50903 |
| ITM ENGINE COMPONENTS | 1601116 |
| MAZDA | FA5433251, FA5433251A, FA5433251B |
| MCI | 3811 |
| MIDAS | BR1444 |
| MIGHTY DISTRIBUTING SYSTEM | 3188 |
| MONROE BRAKES | BD60769 |
| NEWTEK AUTOMOTIVE | 3188 |
| Newtek Automotive USA | 3188 |
| QUALIS | 3188 |
| QUALITY BRAND | Q251 |
| ROADMATES | 526184 |
| STANDARD ROTORS AND DRUMS | 3188 |
| THE UNIVERSAL GROUP | 112880 |
| UAP | 3188 |
| Universal | 112880 |
| VERA | 3402664 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50684 |
| WAGNER | BD60769 |
| WAGNER BRAKE | BD60769 |
| WINHERE | YH3071 |
RAYBESTOS 96026 Fits Vehicles
- Mazda RX-7 (1984-1985)
