(888) 312-8812 Login SignupRAYBESTOS 76547 Raybestos Specialty - Street Performance Brake Rotor
$5749
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
RAYBESTOS 76547 Part Description
Manufacturer
Product Description

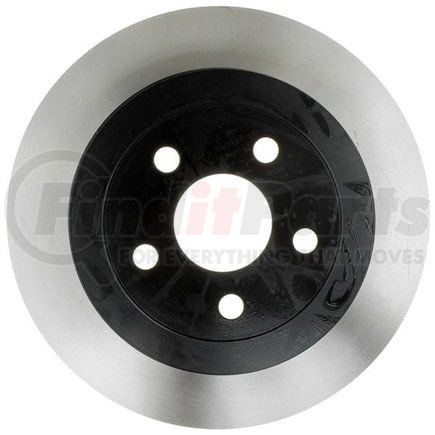

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-1996 Chrysler Sebring Rear, 2010-2008 Chrysler PT Cruiser Rear, 2004-1995 Dodge Stratus Rear, 2000-1995 Chrysler Cirrus Rear, 2000-1996 Plymouth Breeze Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 76547 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.26 IN |
| Center Hole Diameter | 57.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.285 IN |
| Discard Thickness | 7.25 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.551 IN |
| Mounting Bolt Hole Diameter | 14 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.36 IN |
| Nominal Thickness | 9.15 MM |
| Outside Diameter | 10.63 IN |
| Outside Diameter | 270 MM |
| Overall Height | 2.095 IN |
| Overall Height | 53.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999959249 |
RAYBESTOS 76547 Cross References
| Brand | Part Number |
|---|---|
| 29542809, 30999959249 | |
| ADVANCE AUTO PARTS | 145051, YH145051, YH145051C, YH145051P |
| AMERICAN REMANUFACTURED | 789-32043, 89-32043 |
| AUTOSPECIALTY | AR8343, AR8343E |
| AUTOXTRA | 125455, 8076547, AX5370 |
| AUTOZONE | 5370, 5370B, 5370DG, DL5370 |
| BENDIX | 145051 |
| BOSCH | 16010158 |
| BRAKE HEADQUARTERS | BR53305 |
| BRAKEBEST | 16010158, 76547, 76547FZN, 76547R, 76547RGS, 81-125455, BD125455 |
| BREMBO | 08.7420.80, 27037 |
| CALIFORNIA DRUM & ROTOR | 125455 |
| CENTRIC | 120.63043, 121.63043, 125.63043, 126.63043CSL, 126.63043CSR, 126.63043SL, 126.63043SR, 127.63043L, 127.63043R, 128.63043L, 128.63043R, 320.63043, 320.63043F |
| CHRYSLER | 04616433, 04764934AA, 04764934AB, 4616433, 4764934AA, 4764934AB, 5085651AB |
| Casting Numbers | 210687-C, 325428, KH127979 |
| Centric Parts | 120.63043, 121.63043, 125.63043, 126.63043CSL, 126.63043CSR, 126.63043SL, 126.63043SR, 127.63043L, 127.63043R, 128.63043L, 128.63043R, 320.63043, 320.63043F |
| DELPHI | RB249 |
| DURA CORP | BR5370, BR537002 |
| DuraGo | BR5370, BR537002 |
| EIS BRAKES | D17751 |
| EUROROTOR | 53551 |
| GREN | 602501 |
| GUARDIAN | 52-125455 |
| MAGMA PRODUCTS | PSR143047 |
| MIDAS | BR1985, BR2004 |
| MIGHTY DISTRIBUTING SYSTEM | 5370 |
| MONROE BRAKES | BD125455 |
| NEOTEK | 107037GF |
| NEWTEK AUTOMOTIVE | 5370 |
| Newtek Automotive USA | 5370 |
| Omnicraft | QBRR60 |
| PARTS MASTER | P125455 |
| POWERSTOP | AR8343EVC |
| PROMAX | 14-5370 |
| PRONTO | BR5370 |
| QUALIS | 5370 |
| QUALITY BRAND | 5370 |
| STANDARD ROTORS AND DRUMS | 5370 |
| THE UNIVERSAL GROUP | 103881 |
| UAP | 5370 |
| Ultra Brake | 53551 |
| Universal | 103881 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50872 |
| WABCO | PS125455, PS125544 |
| WABCO - Archived | PS125455, PS125544 |
| WAGNER | BD125455, BD125455E |
| WAGNER BRAKE | BD125455 |
| WINHERE | 661316, YH1316 |
| WORLDPAC | 1407-25700 |
| Wagner Brake | BD125455E |
RAYBESTOS 76547 Fits Vehicles
- Chrysler Neon (1995-1997)
- Dodge Neon (2004-2005)
- Chrysler PT Cruiser (2004-2010)
- Plymouth Breeze (1996-2000)
- Dodge Stratus (1995-2006)
- Chrysler Sebring (1996-2006)
- Chrysler Cirrus (1995-2000)
