(888) 312-8812 Login SignupRAYBESTOS 980384R Raybestos R-Line Brake Rotor
MSRP: $45.22
$2949
Save $15.73
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
RAYBESTOS 980384R Part Description
Manufacturer
Product Description

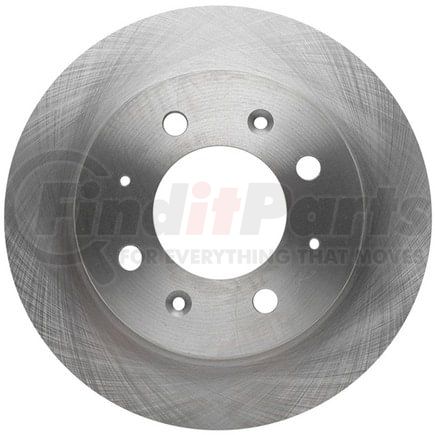

Raybestos R-Line Brake Rotor
Application Summary
2009-2004 Kia Spectra Rear, 2009-2005 Kia Spectra5 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980384R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.992 IN |
| Center Hole Diameter | 76 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.395 IN |
| Nominal Thickness | 10.05 MM |
| Outside Diameter | 10.156 IN |
| Outside Diameter | 257.95 MM |
| Overall Height | 1.63 IN |
| Overall Height | 41.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352495834 |
RAYBESTOS 980384R Cross References
RAYBESTOS 980384R Fits Vehicles
- Kia Spectra5 (2005-2009)
- Kia Spectra (2004-2009)
